When building or buying a home, understanding the type of foundation it rests on is crucial. One common option is the pier foundation, a versatile and durable choice for specific terrains and conditions. But what exactly is a pier foundation, and why do builders and buyers need to know about it? In this comprehensive guide, we’ll explore what a pier foundation is, its types, pros and cons, and when it’s the best option.

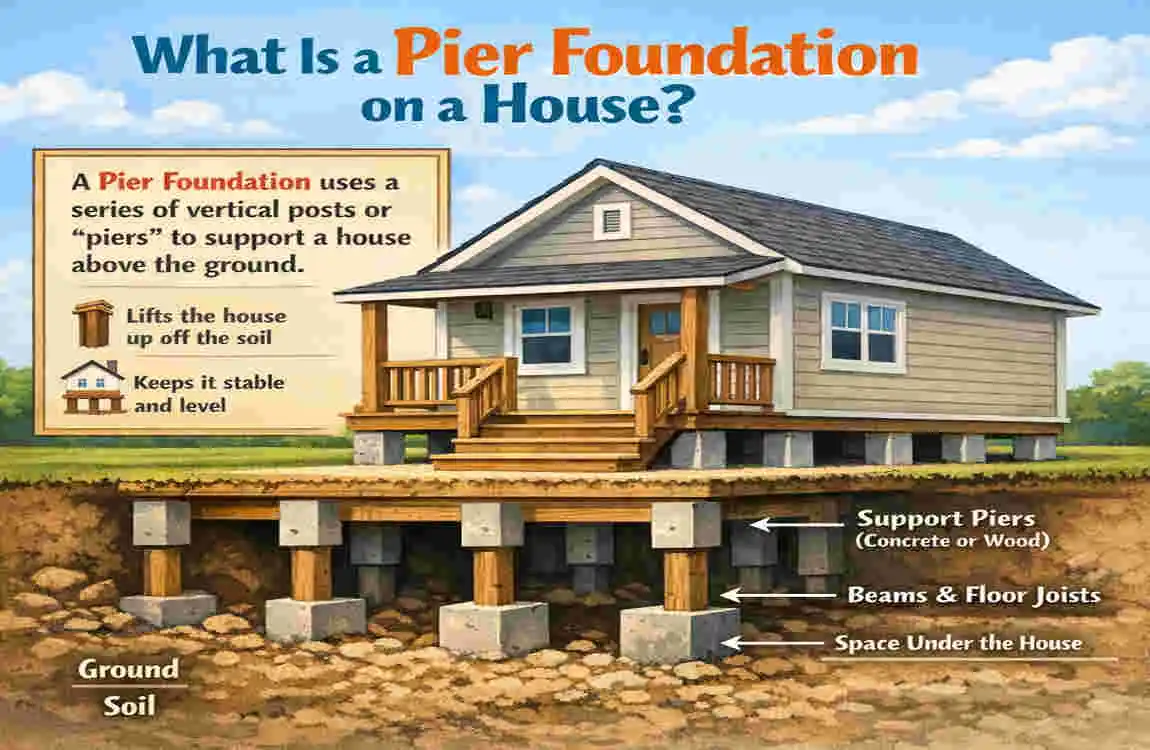

What is a Pier Foundation on a House? (Beginner-Friendly Definition)

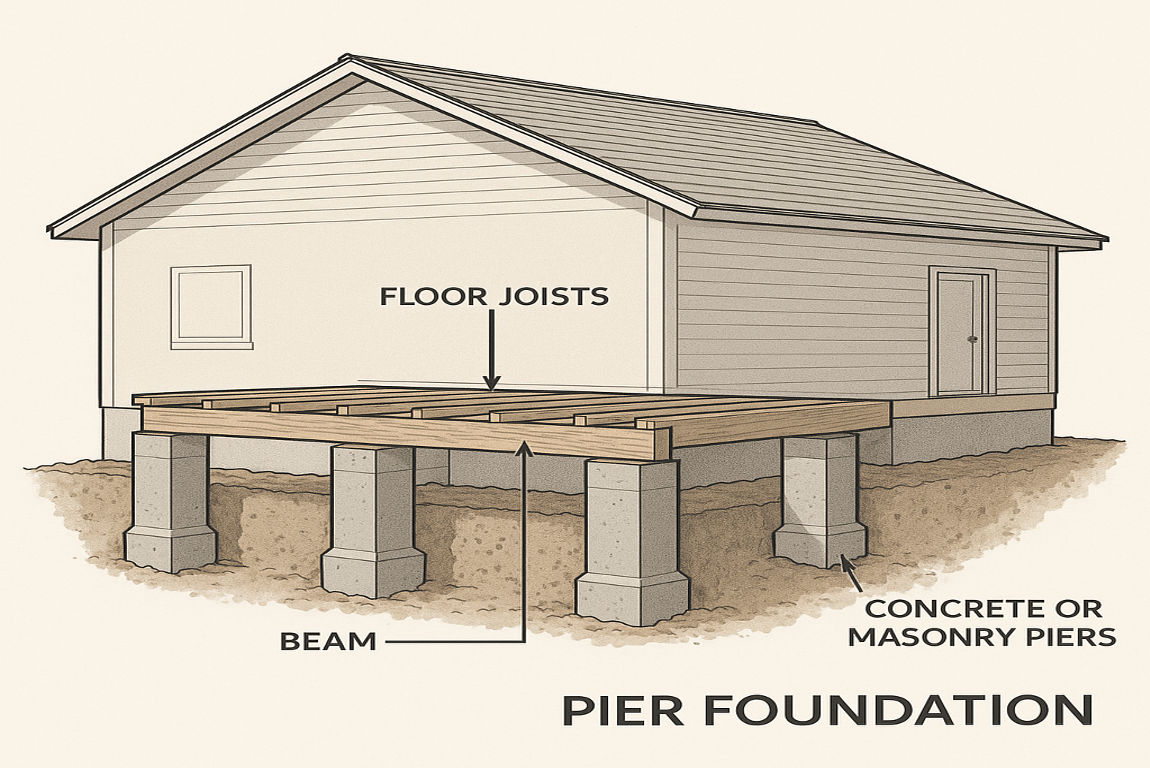

A pier foundation is a structural system that uses vertical piers to support the weight of a house. These piers transfer the structure’s load directly to the ground, usually to deeper, more stable soil layers or bedrock. Think of it as a house resting on strong, sturdy stilts.
How It Differs from Other Foundations
Unlike slab foundations, which involve pouring a solid concrete base, or basements that involve digging out an entire underground space, pier foundations are simpler and more adaptable. Picture a house raised slightly above the ground, supported by multiple piers strategically placed beneath it.
This type of foundation is especially common in areas with:
- High water tables, where flooding is a concern.
- Soft or expansive soils, which can shift under weight.
- Hilly or uneven terrain, where creating a flat foundation is challenging.
Pier foundations provide stability and flexibility in conditions where other foundation types might struggle.
Why Builders Choose Pier Foundations
Builders often opt for pier foundations because of their adaptability and cost-effectiveness. Let’s dive into the reasons why this foundation type is a popular choice:
Ideal for Challenging Soil Conditions
Soil plays a significant role in determining the foundation type. Pier foundations work well in areas with:
- Clay soils expand and contract with moisture.
- Soft topsoil that can’t support the weight of a slab foundation.
- Unstable or expansive soils that might shift over time.
The piers penetrate deeper into the ground to reach stable layers, ensuring the house remains secure.
Perfect for Flood-Prone or Uneven Terrain
In flood-prone or coastal regions, raising the house on piers keeps it above potential water levels, offering protection from water damage. Similarly, on sloped or uneven land, piers can be adjusted to accommodate the varying ground levels without extensive excavation.
Faster Construction and Cost Efficiency
Compared to building a full basement or leveling uneven terrain for a slab foundation, pier foundations are often quicker and less labor-intensive to install. This makes them a cost-effective solution for small to medium-sized residential projects.

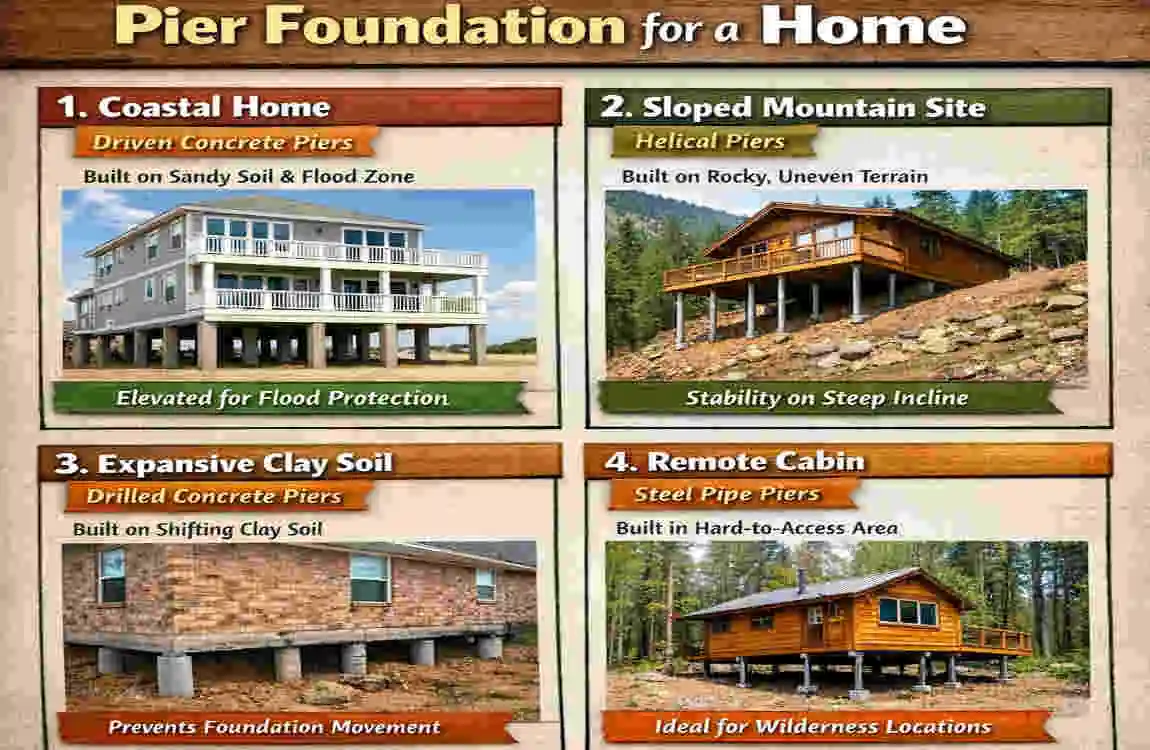

Types of Pier Foundations Used on Houses
There are several types of pier foundations, each suited to specific needs and conditions. Let’s explore the most common ones.

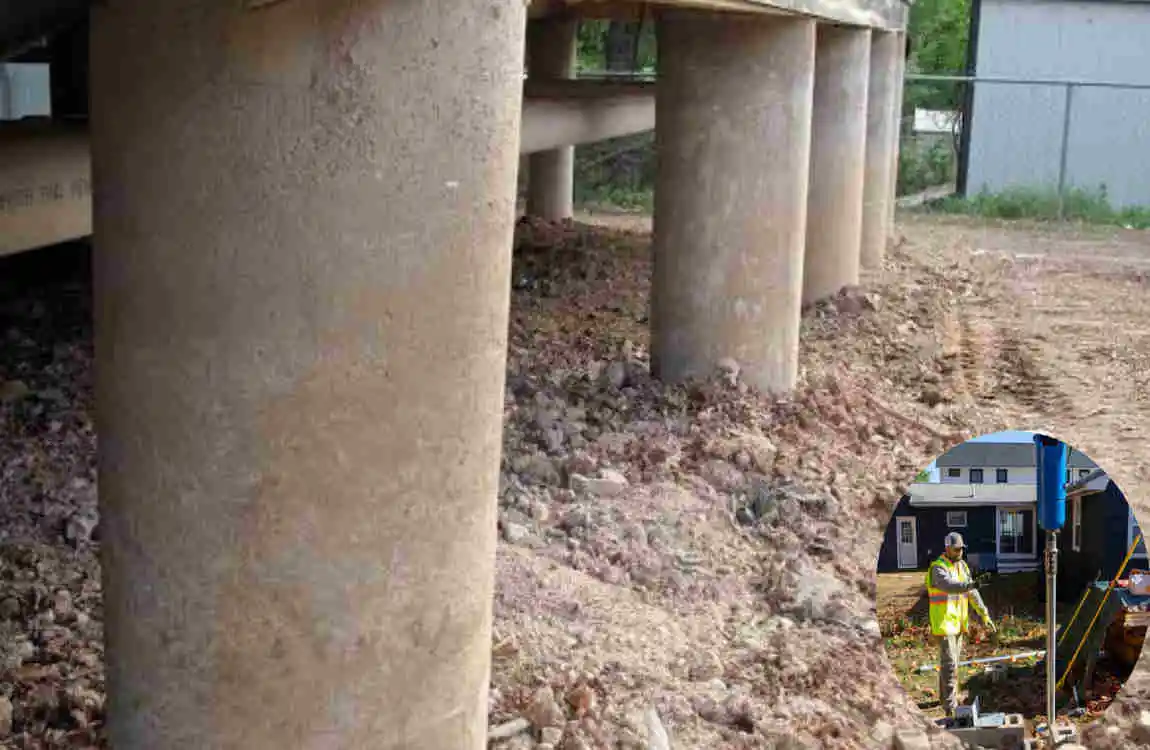

Concrete Piers (Cast-in-Place or Sonotube-Style)
Concrete piers, often cast in cylindrical forms such as Sonotubes, are a modern, durable choice. Builders pour concrete into these forms to create strong vertical columns that can handle significant weight.
- Strength and Durability: Concrete piers are highly resistant to environmental damage.
- Best for New Homes: This type is ideal for modern construction projects requiring a long-lasting foundation.

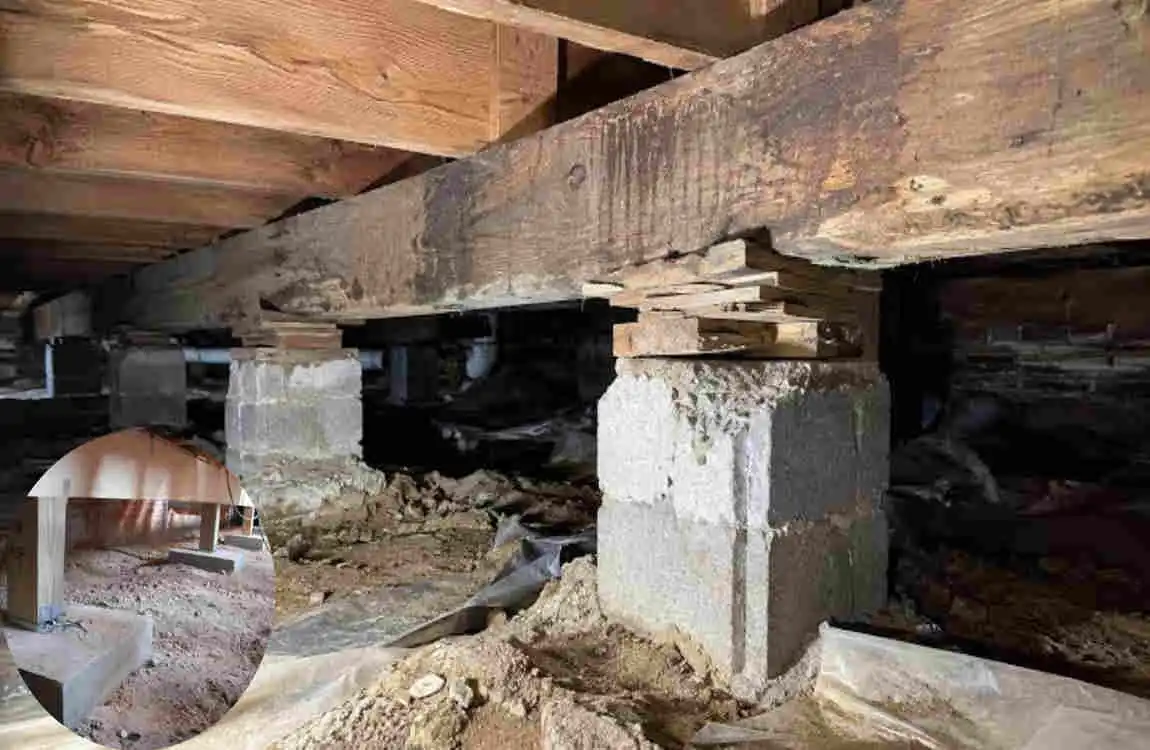

Masonry Piers (Brick or Stone)
Masonry piers are made from brick or stone and are often found in older homes or structures in dry climates. While they have aesthetic appeal, they aren’t as durable in areas with high moisture or heavy loads.
Limitations: They may not perform well in areas prone to earthquakes or heavy rainfall.

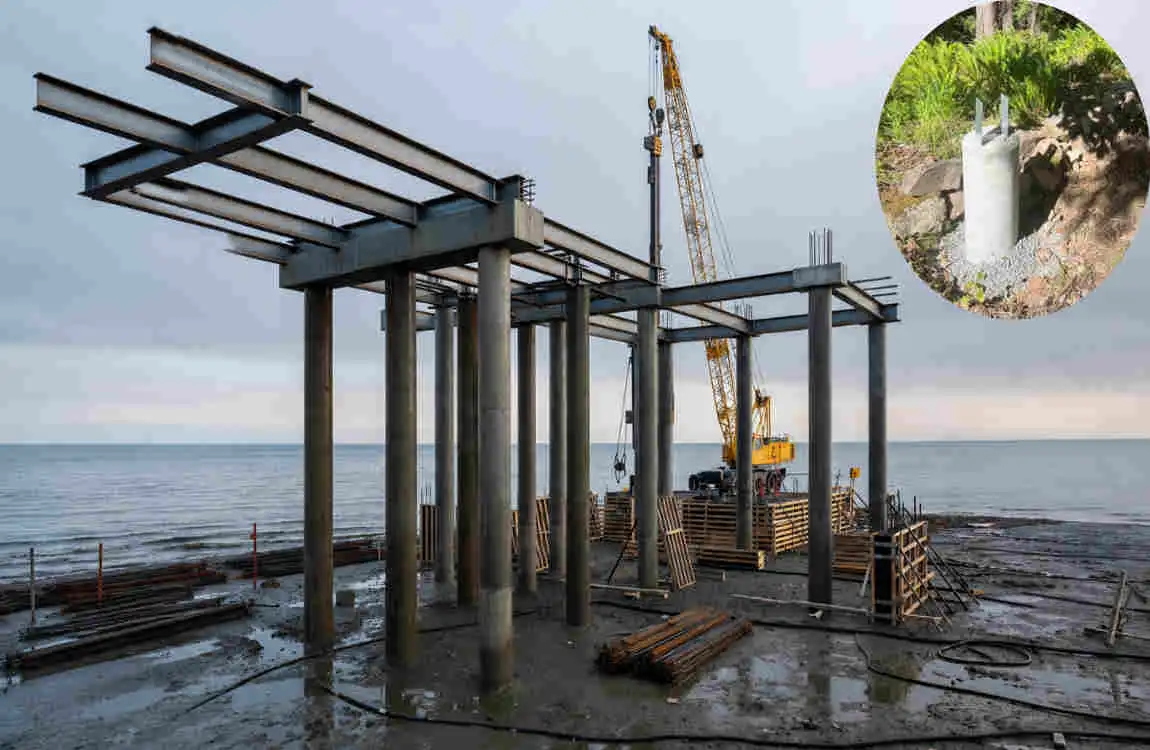

Drilled Caisson (Deep Pier Foundations)
Drilled caissons are large-diameter piers that extend deep into the ground to reach stable soil or bedrock. These are typically used for:
- Heavier buildings with significant loads.
- Sites with unstable upper soil layers.
- High-risk erosion zones.

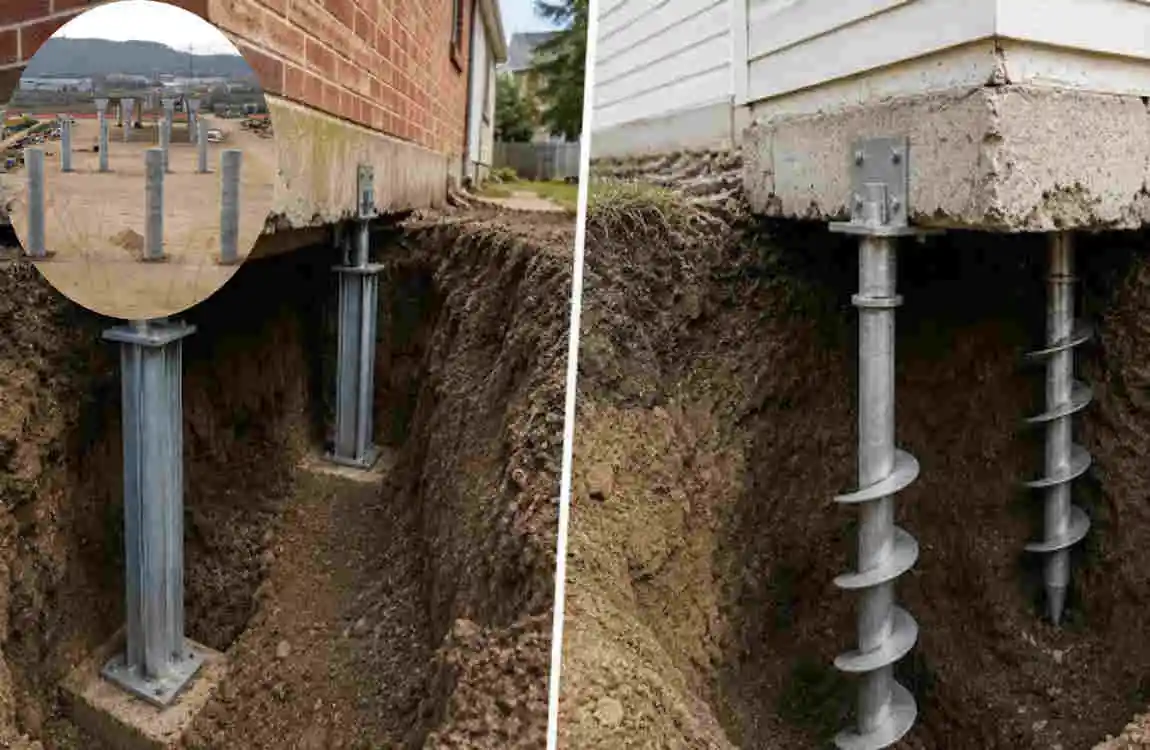

Timber and Steel Piers (Less Common Today)
Timber and steel piers were popular in older structures or temporary setups. While they’re still used, they come with durability concerns:
- Timber Piers: Treated wood can temporarily resist rot, but isn’t it as long-lasting as concrete?
- Steel Piers: Prone to corrosion if not properly maintained or coated.

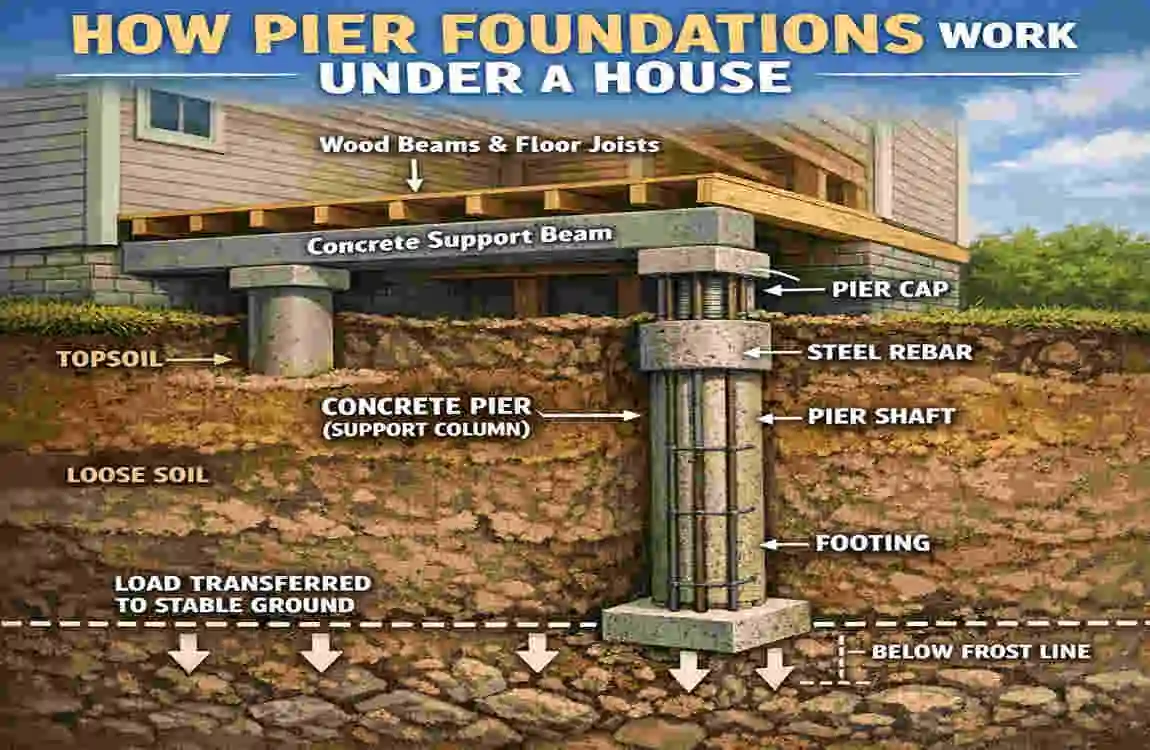

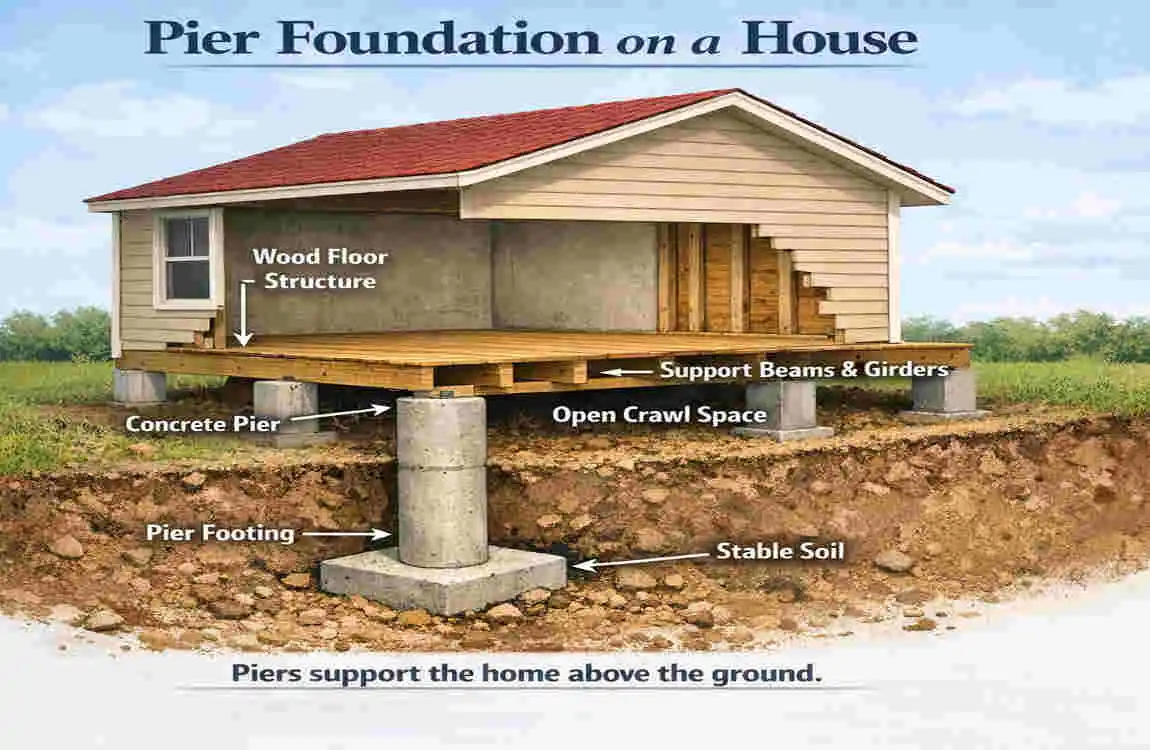

How Pier Foundations Work Under a House
Let’s break down the mechanics of how a pier foundation supports a house:

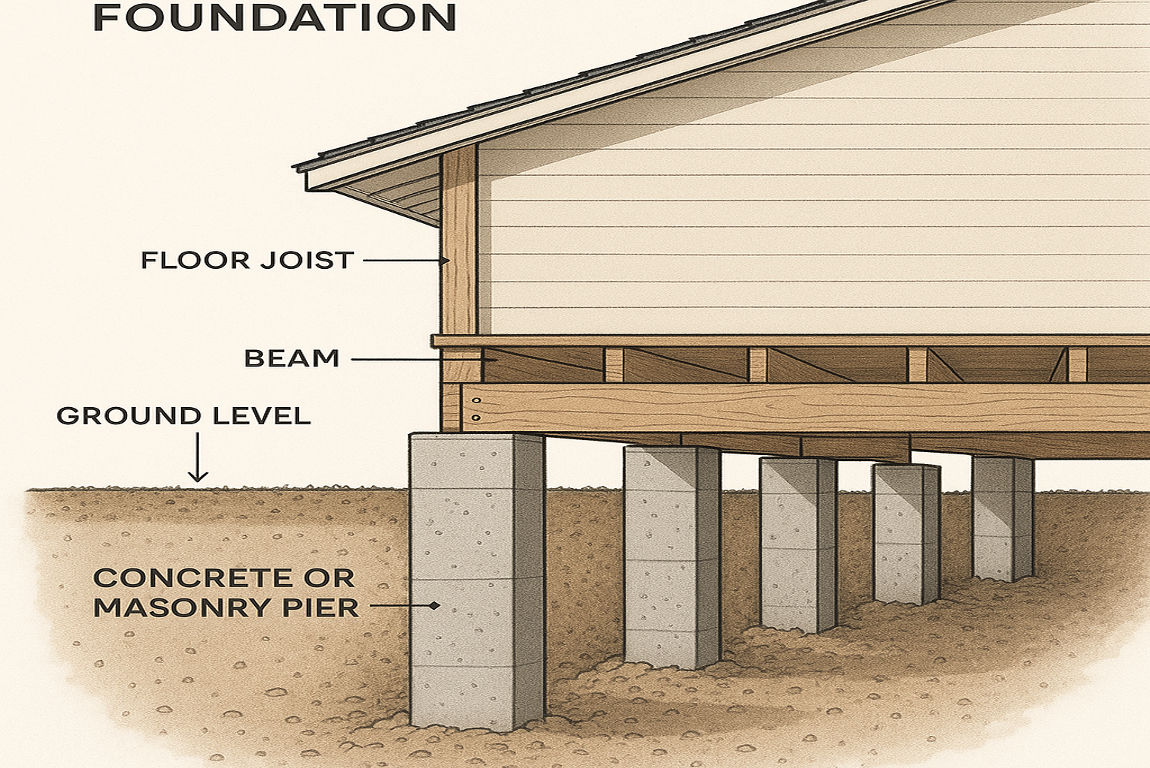

- Load Path: The weight of the house is transferred through the floor joists and beams to the piers, which then distribute it to the soil or bedrock below.
- Compression and Bearing Capacity: The piers are designed to withstand the downward force (compression) from the house and to ensure the house remains stable.
- Key Design Features:
- Spacing: Piers are strategically placed to distribute the load evenly.

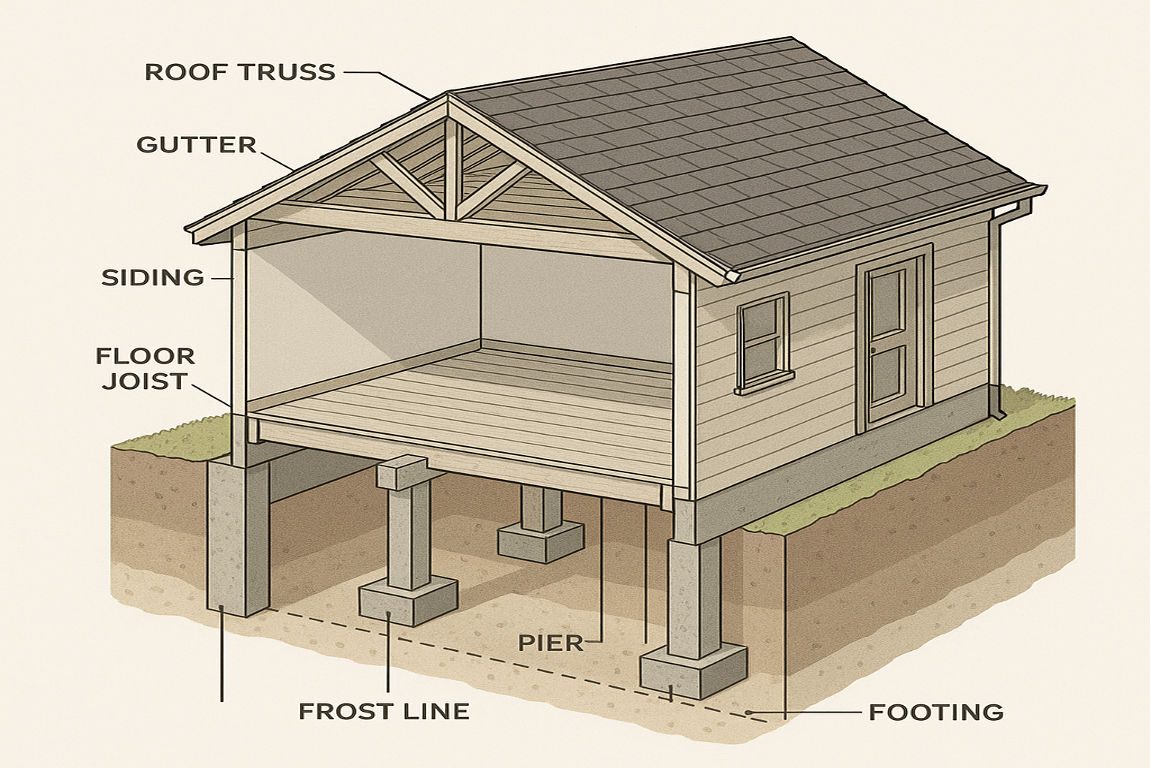

- Depth: They are driven deep enough to reach stable soil or rock layers.

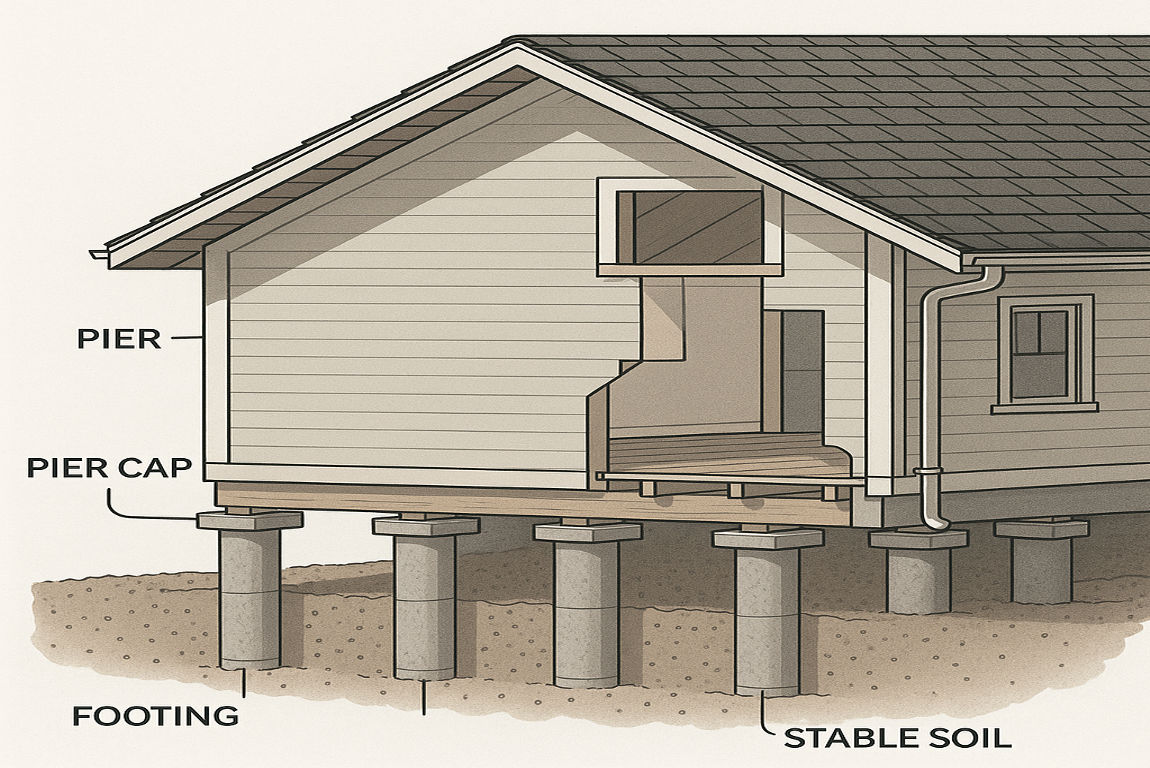

- Pier Cap: A concrete pad or spread footing may be used to distribute the weight further.

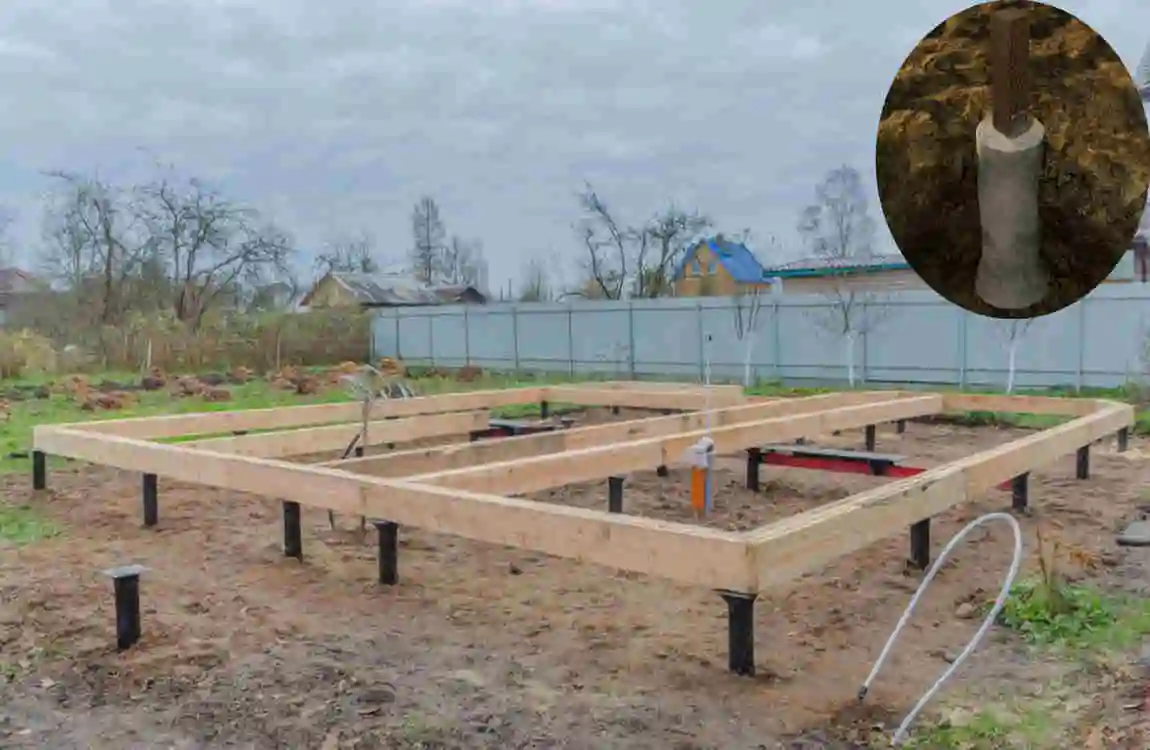

Pier and Beam Foundations Explained

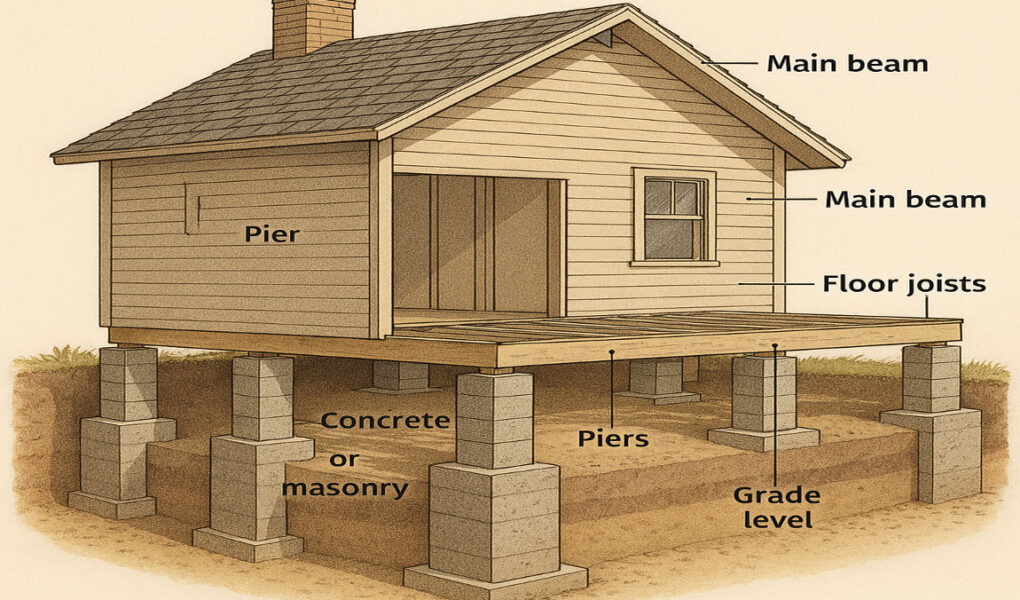

A pier-and-beam foundation is a type of pier foundation in which beams rest on piers, creating a raised floor system. This design includes a crawl space underneath the house, which offers several benefits:
- Easy Access: Plumbing, wiring, and ductwork are easier to access and repair.
- Popular Locations: Common in the southern USA, coastal areas, and flood-prone regions.
However, a crawl space can cause cold air drafts in winter, increasing heating costs.

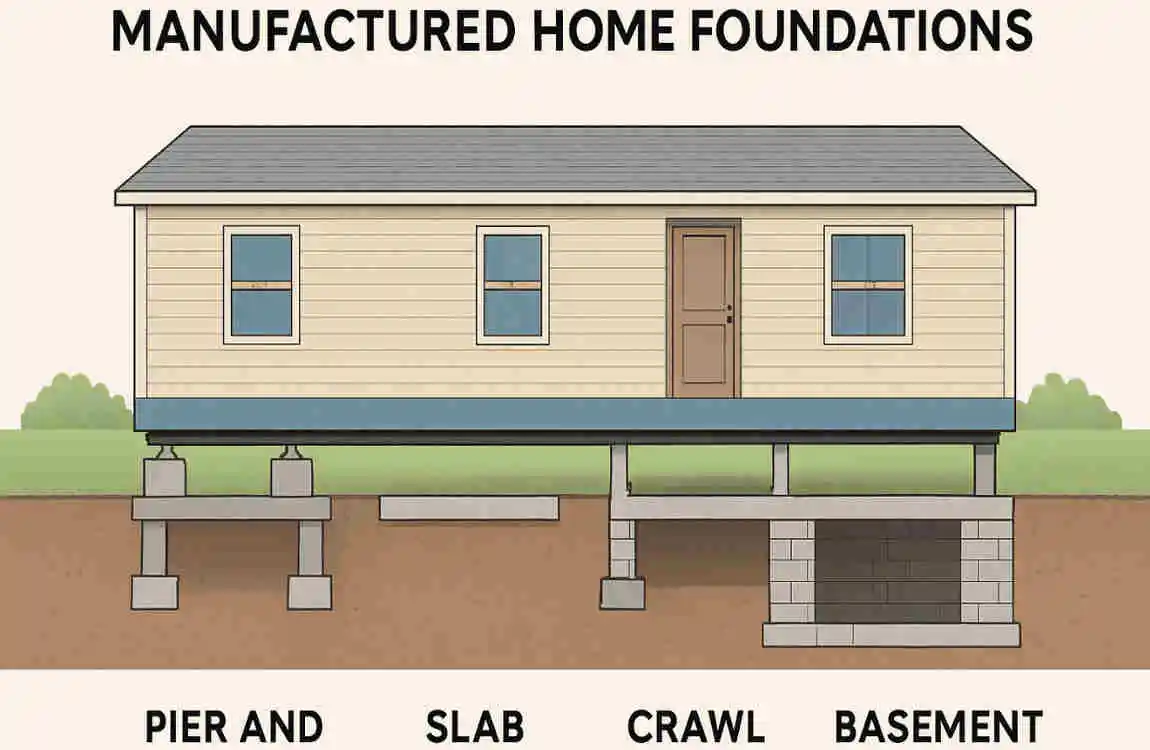

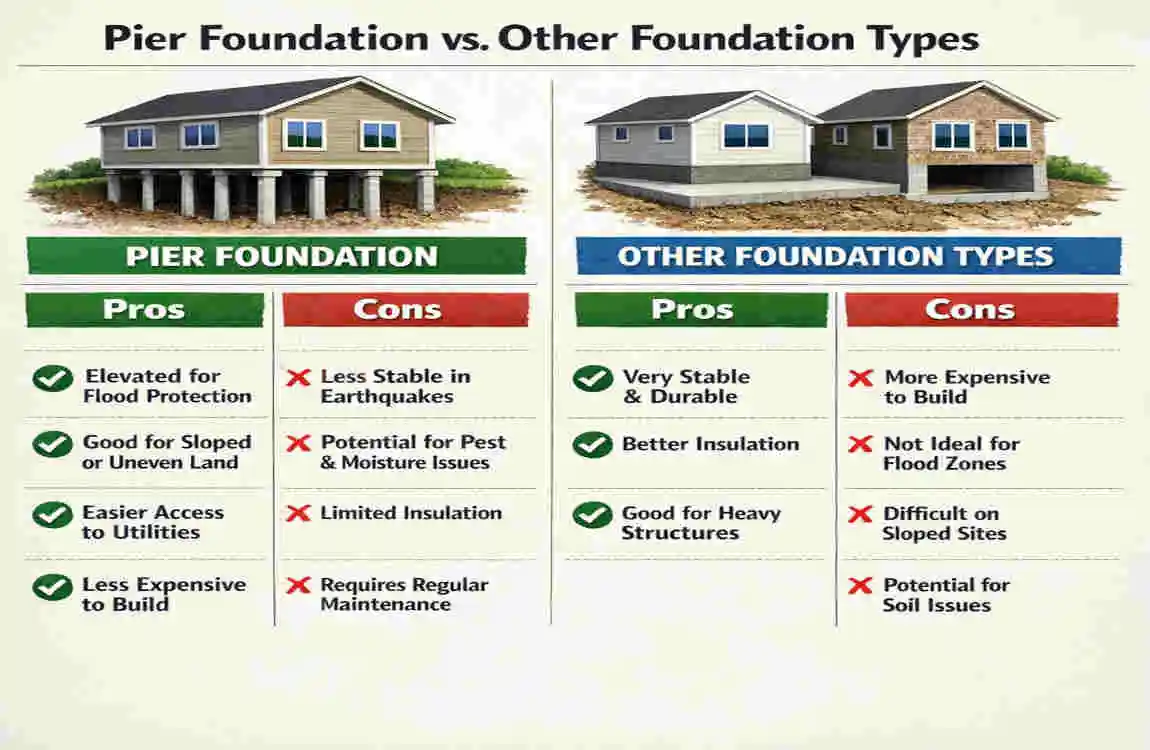

Pier Foundation vs Slab Foundation: Key Differences
Here’s a comparison table to help you understand the distinctions:
Feature Pier / Pier-and-Beam Foundation Slab-on-Grade Foundation
Structure Type : House on columns + beams , Flat concrete slab under house
Soil Suitability: Ideal for soft, uneven soil. Best for stable, compact soil
Flood Risk Better for high water-table areas , Vulnerable to flooding
Access the crawl space for utilities. No crawl space
Cost Moderate to higher Often lower
Repair Complexity Easier to repair Difficult to access cracks
Advantages of Pier Foundations for Builders and Buyers
Pier foundations come with numerous benefits:
- Adaptability: Perfect for uneven or soft soil.
- Flood Resilience: Protects homes in areas prone to flooding or high water tables.
- Repair-Friendly: Makes it easier to lift and stabilize the structure if settlement occurs.
- Utility Access: Crawl spaces make plumbing, wiring, and ductwork repairs easier.
Possible Drawbacks and Maintenance Concerns
While pier foundations have advantages, there are some drawbacks to consider:
- Termite Risks: Wooden beams in pier-and-beam systems are susceptible to termites.
- Uneven Settling: If piers aren’t installed evenly, the house may experience uneven settling.
- Cold Drafts: Raised floors can let in cold air, especially in colder climates.
- Vibrations: Light structures on poorly spaced piers may experience vibration issues.
How Pier Foundations Are Built: Step-by-Step (for Builders)
Site Survey and Soil Testing
Soil testing determines the pier depth and type required for a stable foundation.
Marking and Excavation
Pier locations are marked and excavated to the necessary depth using augers or drills.
Reinforcement and Concrete Pouring
Rebar cages are placed in the holes, and concrete is poured to form the piers.
Installing Beams and Floor Systems
Beams are placed atop the piers, followed by floor joists and the subfloor.
Backfilling and Finishing
The area around the piers is backfilled, and the crawl space is ventilated to control moisture.
What Home Buyers Should Know About Pier Foundations
How to Inspect a Pier Foundation Home
Look for:
- Sloping floors or uneven doors.
- Cracks in walls or floors.
- Visible damage to beams or piers.
Red Flags to Avoid
Be cautious of:

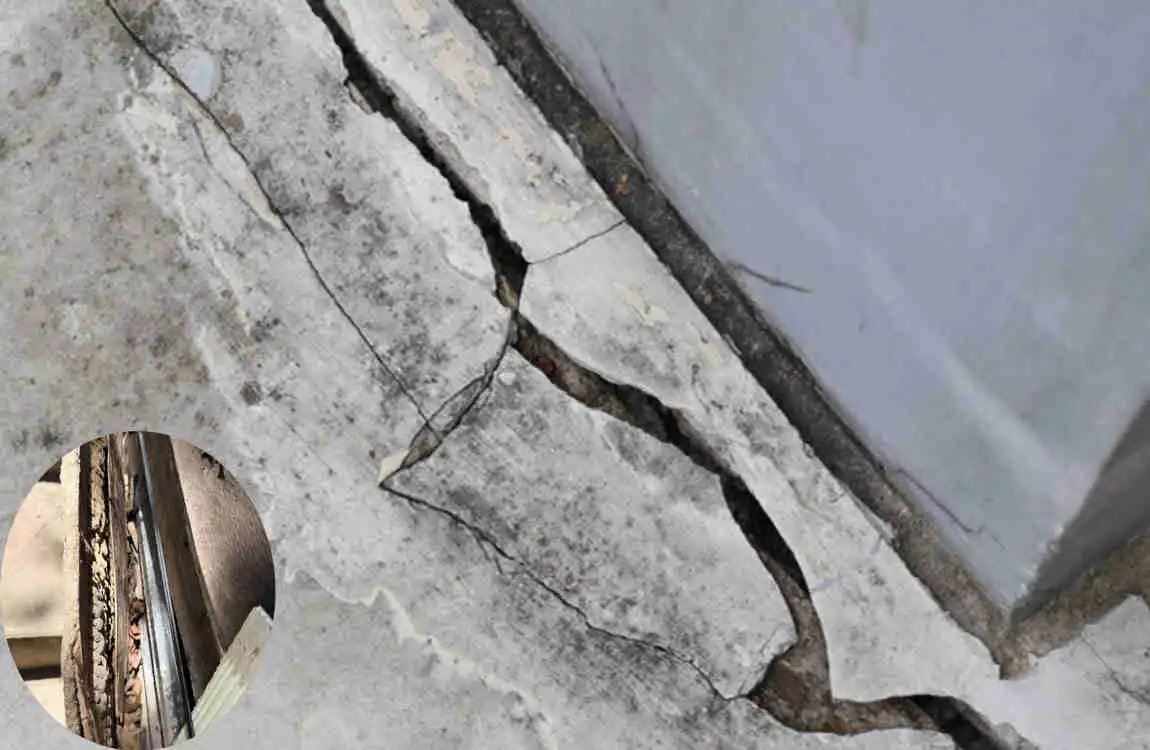

- Large foundation cracks.
- Water damage in crawl spaces.
- Older timber pier systems with rot or termite damage.

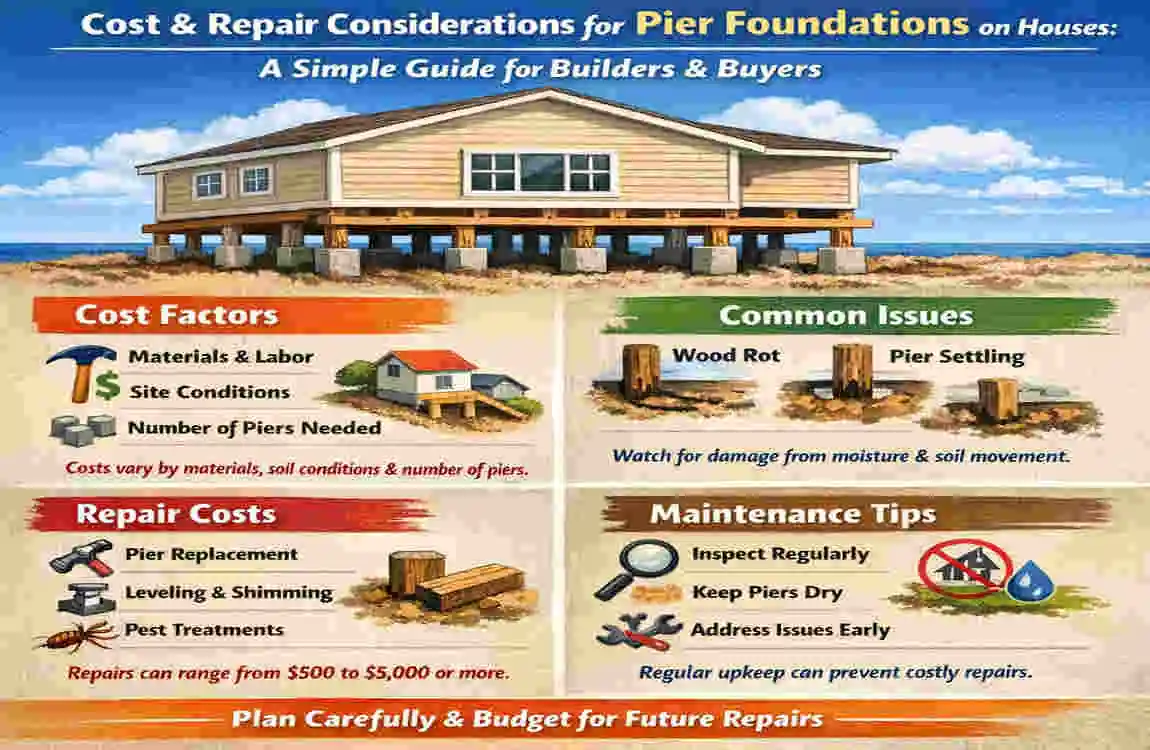

Cost and Repair Considerations for Pier Foundations
The cost of pier foundations depends on factors such as:
- Number of Piers: More piers increase costs.
- Depth: Deeper piers require more labor.
- Materials: Concrete is generally more expensive than timber.
Repairs typically involve adding piers, reinforcing existing ones, or jacking the structure to correct settlement.

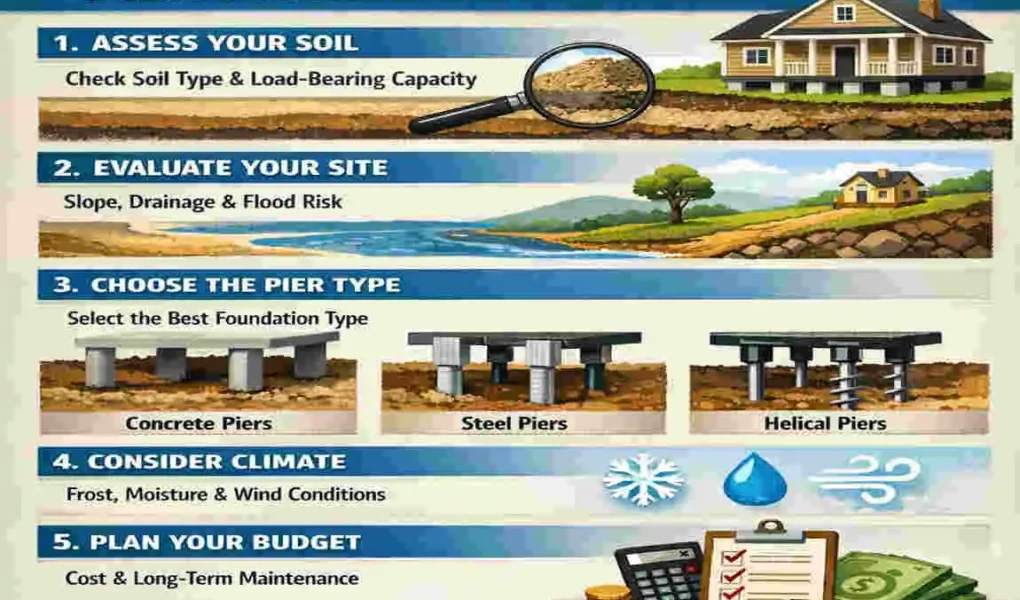

When to Choose or Avoid Pier Foundations
Choose Pier Foundations When:
- The soil is soft or unstable.
- The location is flood-prone or on a slope.
Avoid Pier Foundations When:
- The budget is tight, and simpler slabs suffice.
- The soil is compact and stable.
Frequently Asked Questions (FAQs)
What is a pier foundation on a house in simple terms?
A pier foundation is a system of vertical columns supporting a house, transferring its weight to the ground.
Are pier foundations safe?
Yes, when designed and installed correctly, they are highly safe and durable.
Can pier foundations be repaired?
Yes, they are easier to repair compared to slab foundations, especially in pier-and-beam systems.
