Isometric house drawings are everywhere right now: real estate listings, interior design mood boards, architecture student portfolios, game art and even social media home tours. The style is popular because it shows a whole home, with its width, depth and height, in a single clean picture, and you don’t need to be a trained artist to produce one.
What Is an Isometric Drawing?

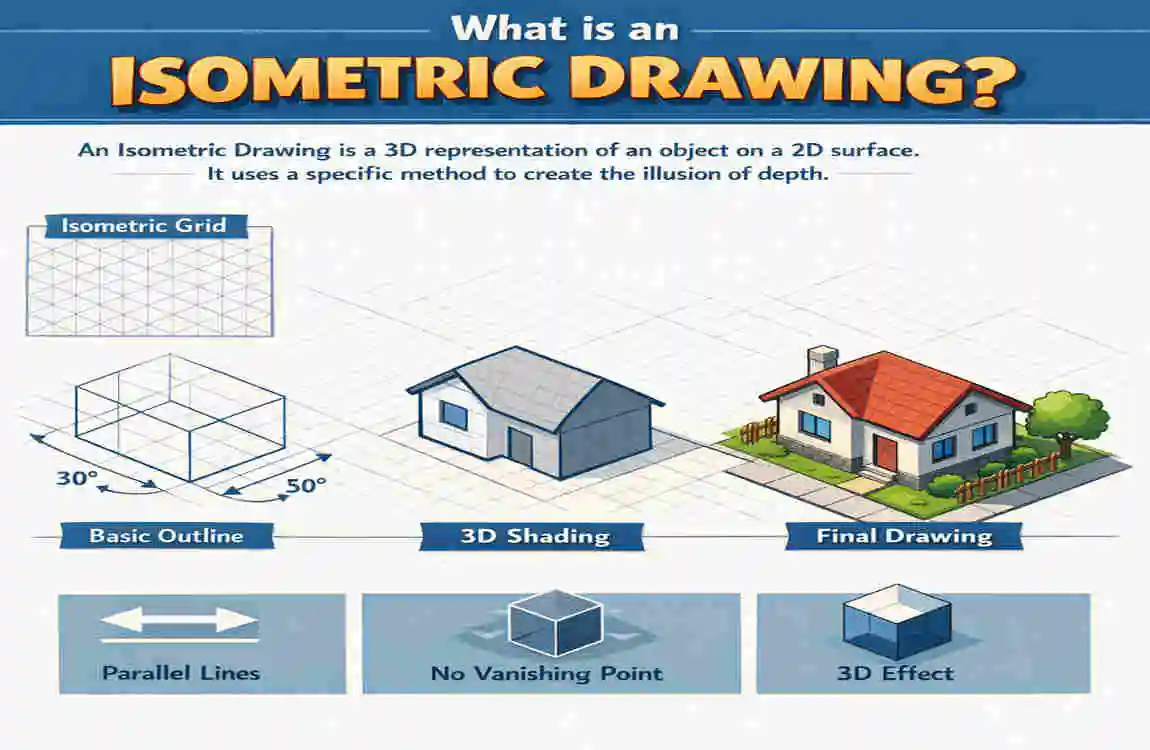

An isometric drawing is a way of showing a three-dimensional object on a flat sheet of paper. Vertical lines stay vertical, and the two horizontal directions are drawn at 30 degrees from the horizontal. Because all three axes are drawn at the same scale, you can measure along any of them with a ruler, which is why isometric projection is so widely used in technical drawing, engineering and architecture.
Designers often compare it with perspective drawing. In perspective, parallel lines meet at a vanishing point and distant objects look smaller. In an isometric drawing, parallel lines stay parallel and nothing shrinks with distance, so the drawing looks tidy and is easy to measure. The Creative Bloq isometric drawing guide gives a good overview of the difference if you want to read more.
What You Need Before You Isometric house Start

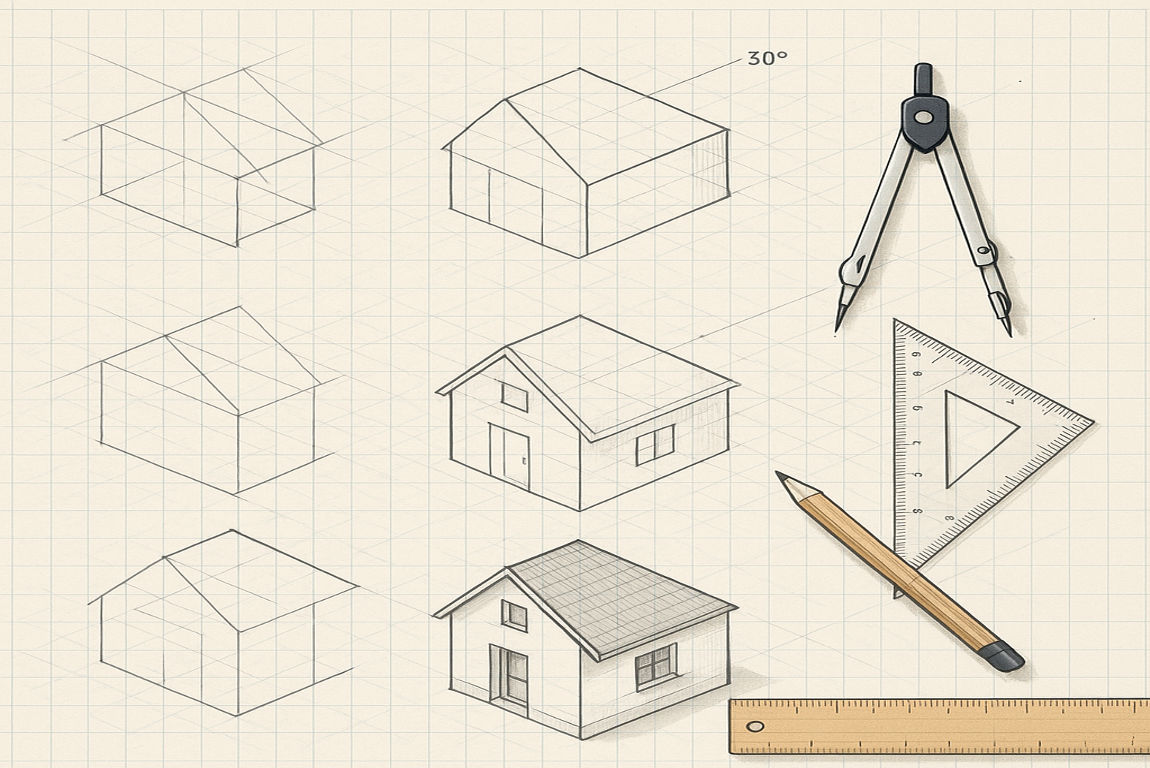

- Isometric grid paper (the easiest option for beginners), or plain paper if you prefer to rule your own angles.
- A sharp HB or 2H pencil for light construction lines.
- A ruler and, ideally, a 30/60 set square.
- A good eraser.
- Fine liner pens or colored pencils for the finishing touches.

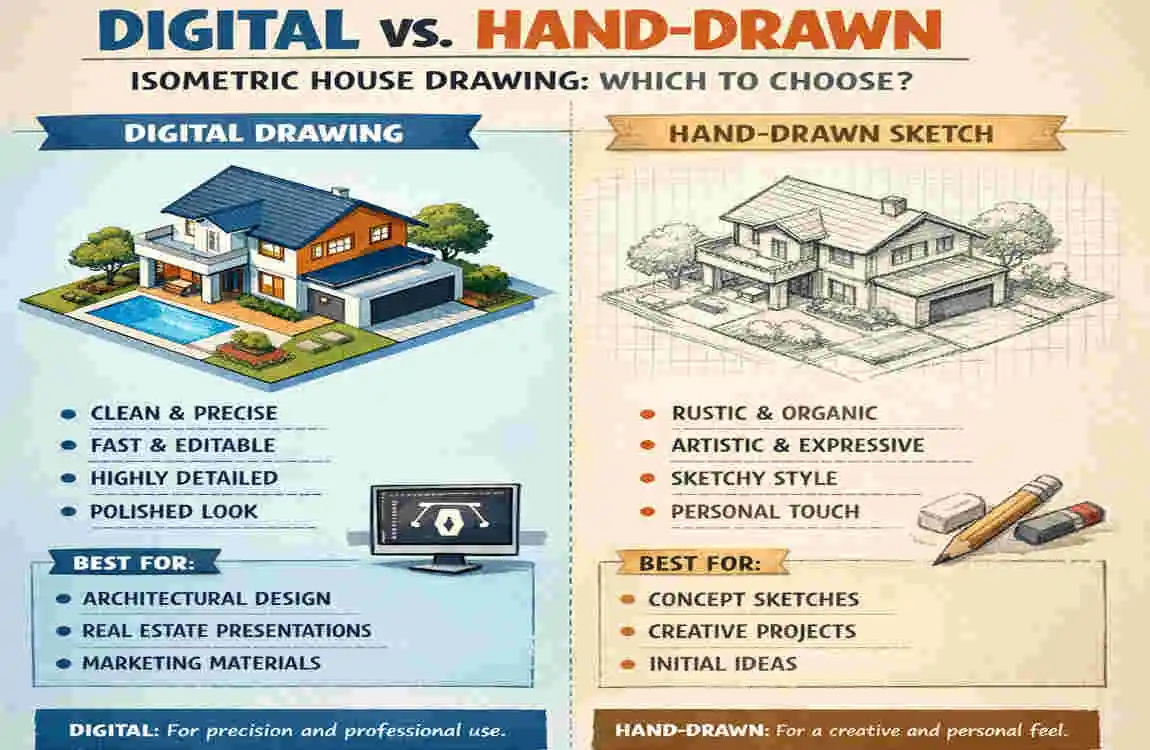

Prefer to work on a screen? Free and paid tools such as SketchUp, Adobe Illustrator, Figma and Inkscape all offer isometric grids or snap-to-angle settings. The steps below are exactly the same on paper or on a computer architecture.

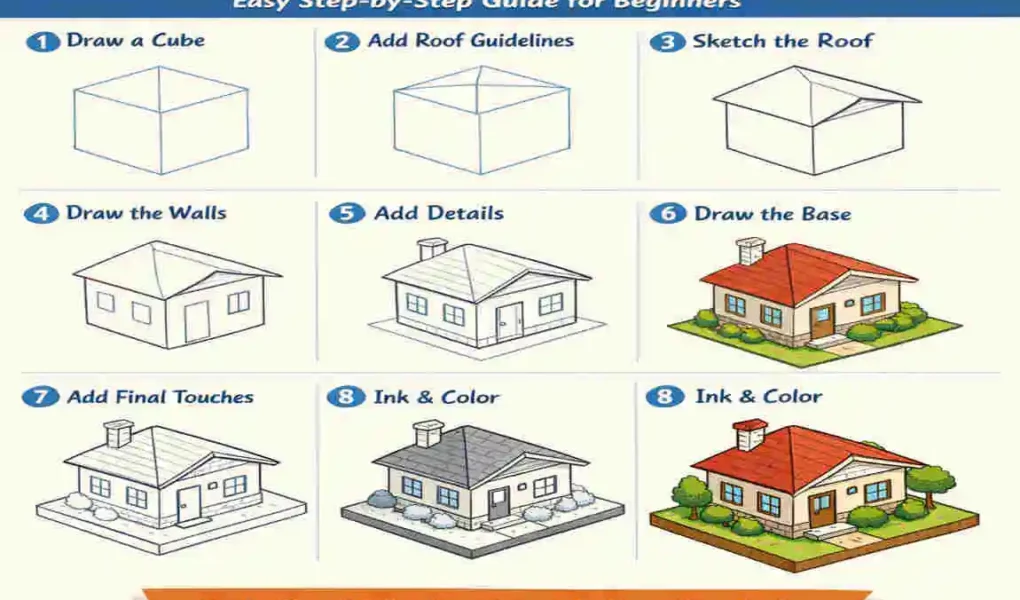

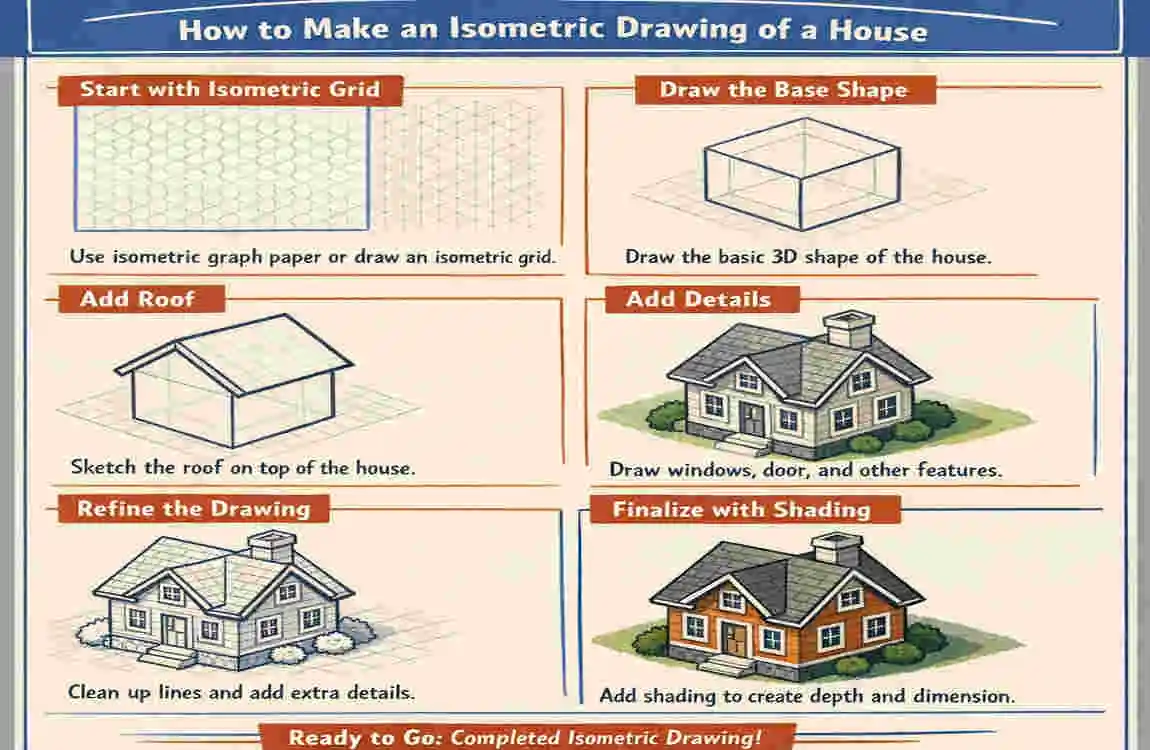

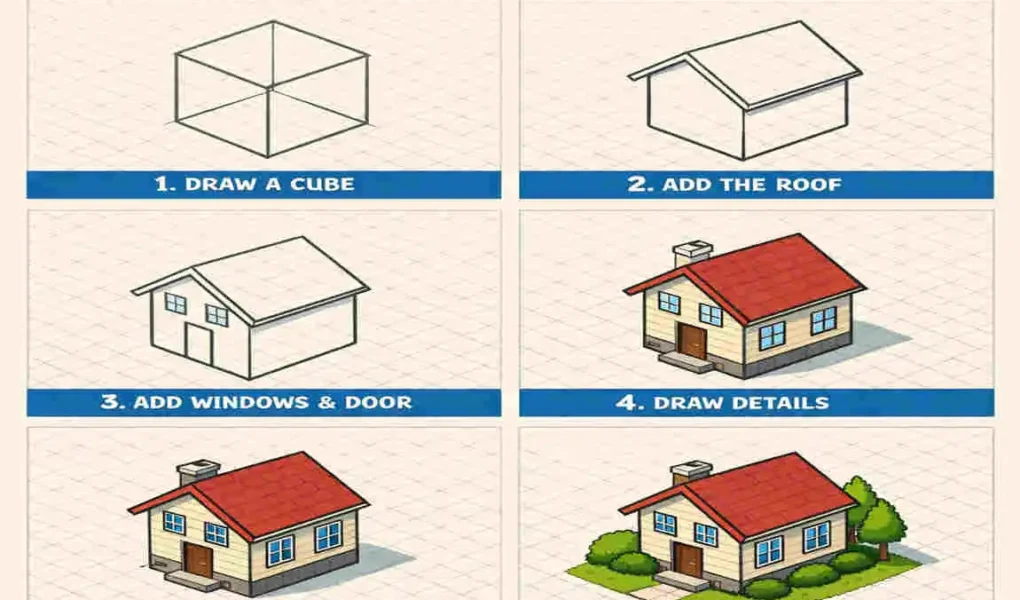

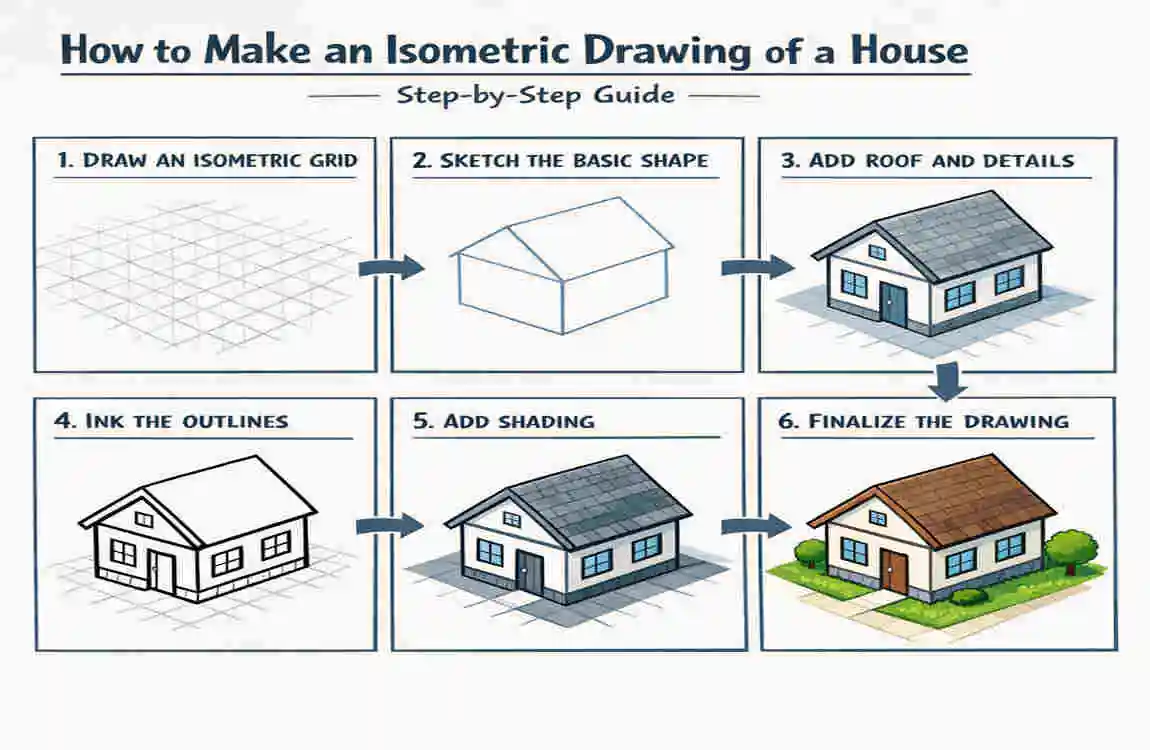

Step-by-Step: How to Draw an Isometric House

Understand the three isometric axes

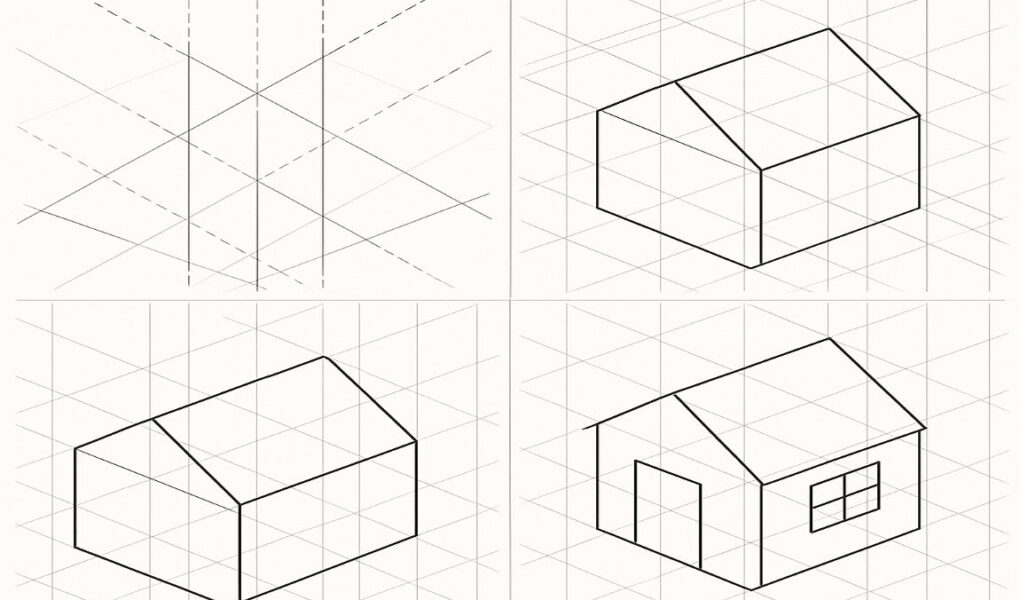

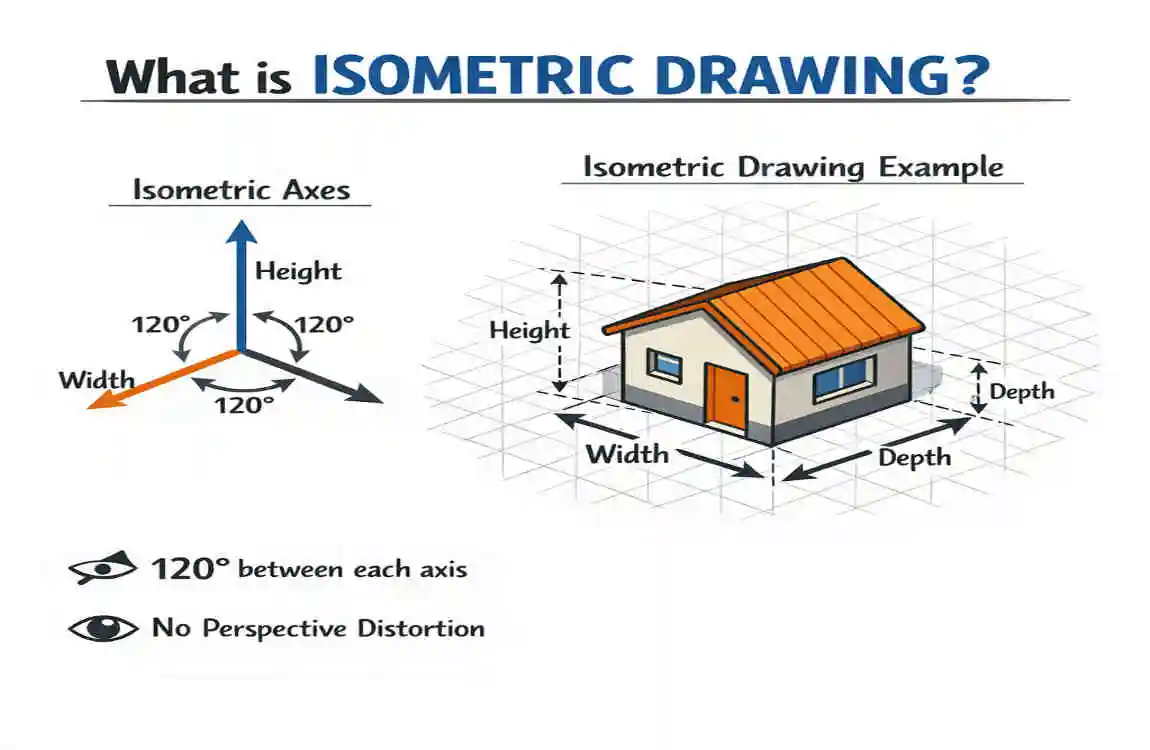

Every isometric drawing is built on three directions: one vertical axis for height, one axis running 30° up to the right for width, and one running 30° up to the left for depth. If you use isometric grid paper, these lines are already printed for you. If you use plain paper, lightly rule two 30° lines through a starting point.
Decide the size of your house
Pick simple units before you draw. For example, let one grid square equal one yard. A small starter house could be 5 units wide, 4 units deep and 3 units tall to the eaves. Keeping the numbers simple helps you stay accurate and spot mistakes early.
Draw the front corner and the base

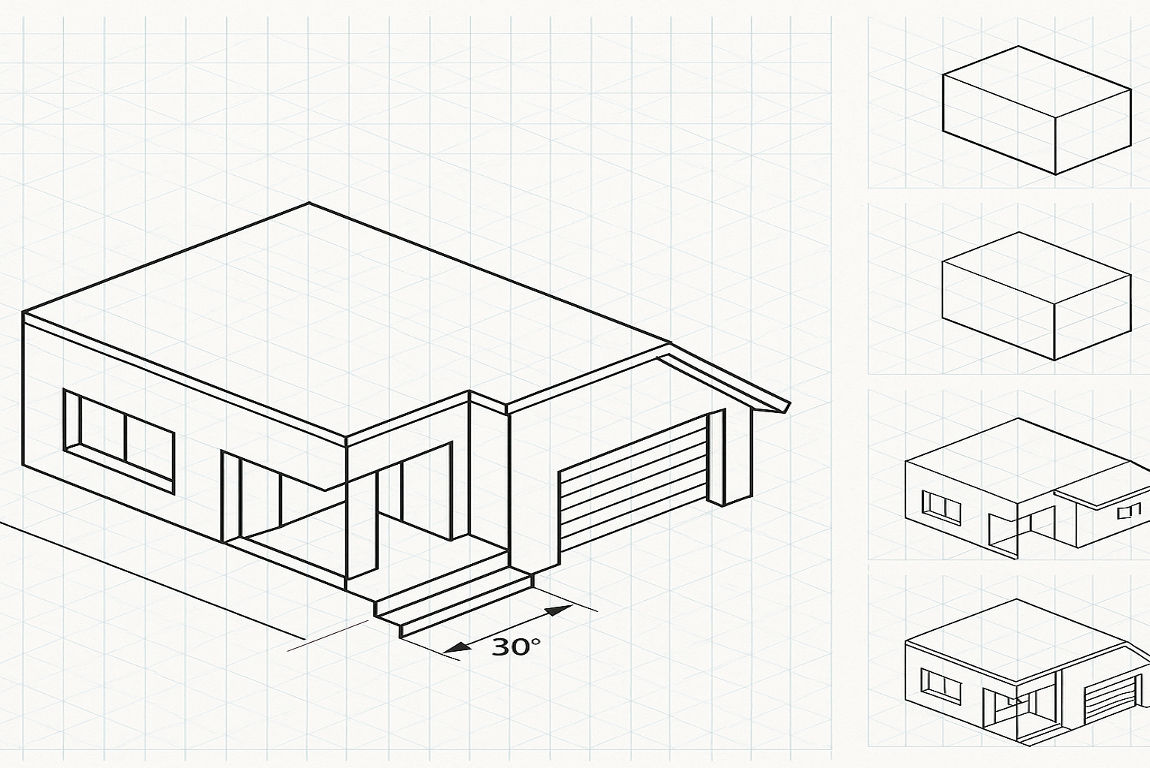

Start with a vertical line for the nearest corner of the house. From its bottom point, draw one line 5 units up and to the right (the width) and another 4 units up and to the left (the depth). From the end of each of those lines, draw a new line parallel to the opposite one. You now have a diamond-shaped floor plan, which is the base of the house seen from above and at an angle.
Raise the walls to build the house box

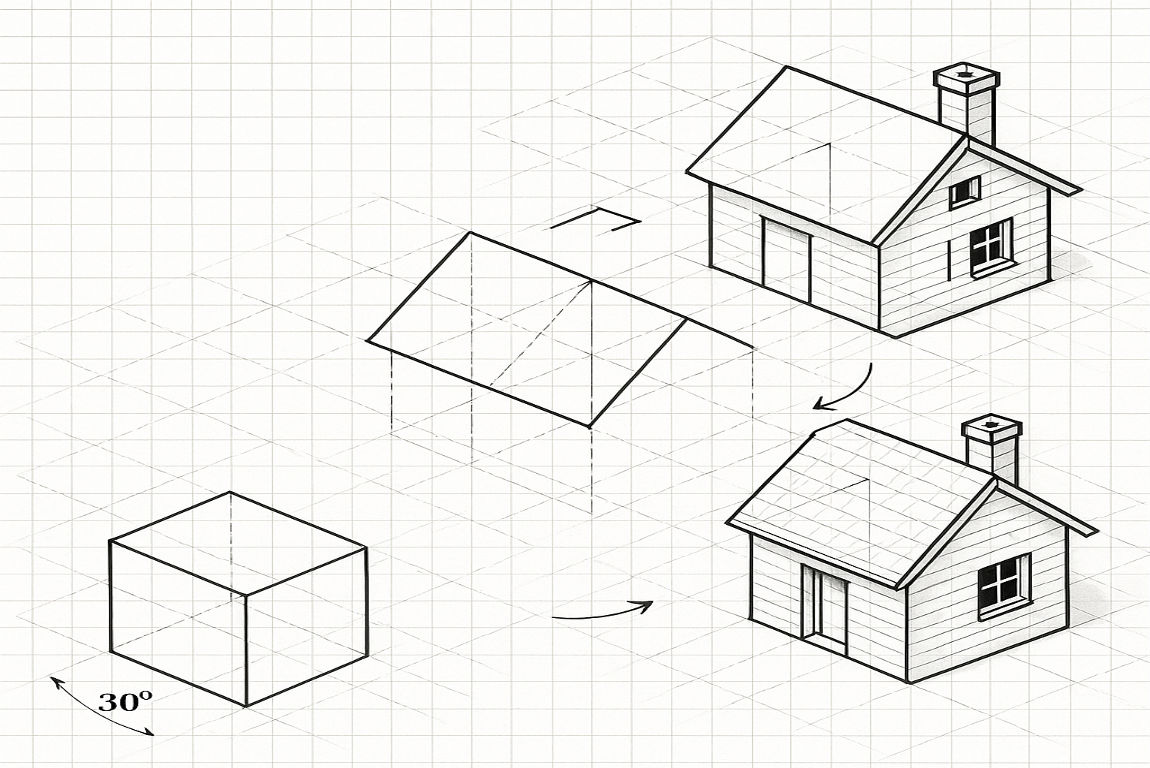

From the three visible corners of the base, draw vertical lines 3 units high. Then join the tops with lines that follow the same 30° angles. You now have a simple box. This box is the foundation of every isometric building drawing, so take your time to keep every line parallel to one of the three axes.
Add the roof

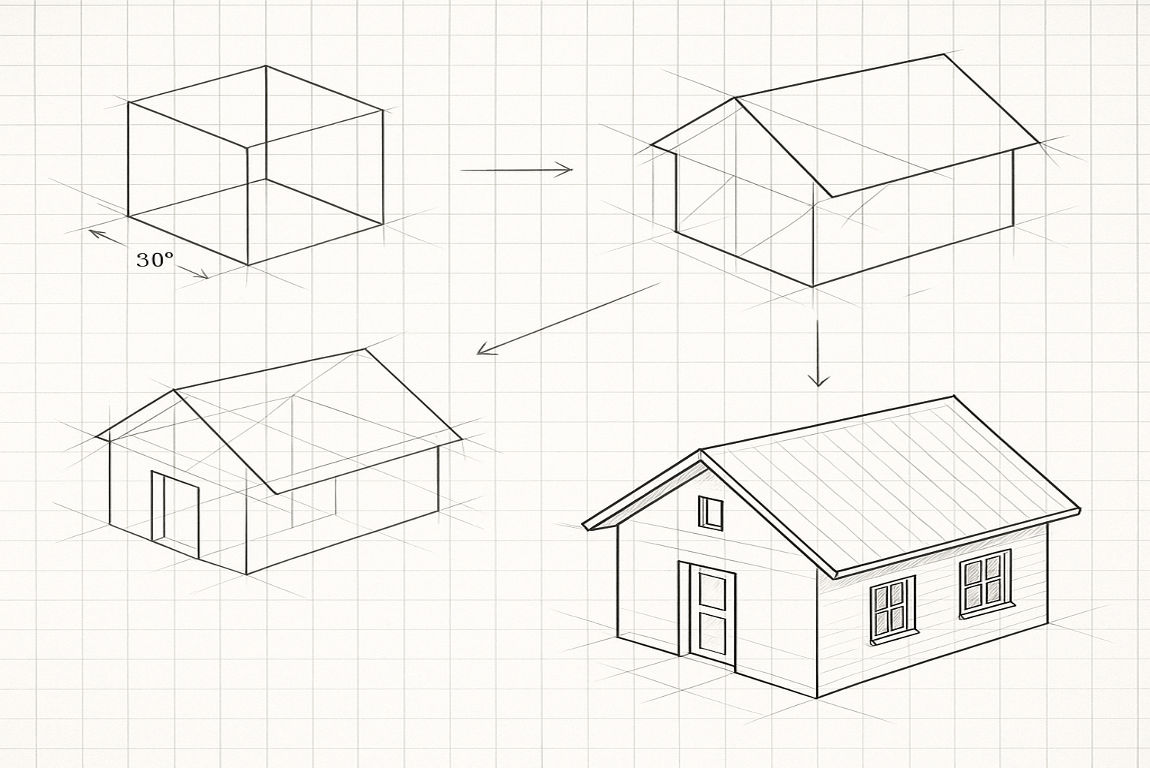

A gable roof is the most common choice. Find the midpoint along the top edge of one end wall and measure up from it to set the roof height (about 1.5 to 2 units works well). That point becomes one end of the roof ridge. Draw the ridge back at 30°, parallel to the long wall, then connect the ridge ends to the eave corners. Always work from the midpoint of the wall rather than guessing by eye, because that is what keeps the roof symmetrical.
Draw the door, windows and chimney
Every feature must follow the plane of the wall it sits on. On the right-hand wall, draw door and window edges as verticals and lines running at 30° to the right. On the left-hand wall, they run at 30° to the left. Chimneys are small boxes, so draw them with the same three directions as the main house. Measure positions from the corner of the wall, using the same grid units you chose in Step 2.
Clean up and darken the outline
Erase the hidden lines and construction lines. Then go over the visible edges with a darker pencil or a fine liner. A slightly thicker outline around the whole house makes it stand out and gives the drawing a professional look.
Add shading and color
Pick a light source, such as the upper right, and keep it consistent. Faces that point toward the light stay light. Faces that point away get a darker tone. In a classic isometric house drawing, the right wall is light, the left wall is a mid tone, and the roof gets its own color. Small details such as a door knob, window frames and a soft ground shadow add realism with very little effort.
Common Mistakes (and How to Avoid Them)
| Mistake | How to fix it |
|---|---|
| Using 45° instead of 30° | That makes an oblique drawing, not an isometric one. Use a 30/60 set square or isometric grid paper. |
| Letting vertical lines lean | Keep every vertical line truly vertical. Use a ruler against the paper edge. |
| Drawing circles as normal circles | On an isometric face a circle becomes an ellipse. Draw the isometric square first, then fit the ellipse inside it. |
| Guessing the roof peak | Always start from the midpoint of the end wall. |
| Pressing too hard early | Use light construction lines first. Darken only when the structure is right. |
Tips to Improve Your Isometric Drawings

- Start with cubes. Practice a few cubes and boxes before you attempt a whole house.
- Count grid squares instead of measuring. It is faster and keeps the angles correct.
- Draw lightly first, including hidden edges, then darken only what is visible.
- Try different roof shapes such as hip, flat or lean-to once the gable version feels easy.
- Add a garage, porch or extension as extra boxes joined to the main house.
- Study real floor plans. Turning a flat plan into an isometric view is excellent practice.
Where to Use an Isometric House Drawing
Isometric house drawings are useful for presenting renovation ideas to family or contractors, sketching an extension, creating clean illustrations for blogs and listings, and building a design or architecture portfolio. If you are planning a renovation, browse our home improvement guides for ideas before you start sketching. You can also look through our celebrity homes section for inspiration, because many famous properties make excellent drawing practice. For wider background on drawing standards, the technical drawing overview is a helpful read.
How to Make an Isometric Drawing of a House: FAQs
What is an isometric drawing of a house?
An isometric drawing shows a house in a 3D-style view, displaying its height, width, and depth on a flat surface.
What tools do you need to draw a house isometrically?
You can use a pencil, ruler, eraser, isometric grid paper, or digital drawing software.
How do you start an isometric house drawing?
Start by drawing the main walls using vertical lines and two sets of slanted lines, typically at 30-degree angles.
How do you draw the roof?
Draw sloping roof lines from the top edges of the walls, then connect them to create the roof shape.
Can beginners draw an isometric house easily?
Yes, beginners can start with a simple house shape and gradually add doors, windows, roof details, and other features.
What is the best way to improve an isometric house drawing?
Practice keeping parallel lines consistent, maintaining proportions, and adding light shading to make the house look more three-dimensional.
Final Thoughts
Making an isometric drawing of a house comes down to one idea: keep every line vertical or at 30 degrees. Build the box, add the roof, place the details on the right planes, then finish with shading. Practice a few times and you will be able to sketch any home, from a small cottage to a modern villa, with confidence. For more practical ideas, visit Home Comfort Experts and keep exploring our home and design guides.
