Have you ever looked at a blank wall in your home and wondered what goes on behind the drywall? For many homeowners, the electrical system feels like a hidden, complex maze. However, understanding how to wire a house is an incredibly empowering skill. Taking on a house wiring project as a DIY endeavour can seem overwhelming at first, but with the right guidance, it transforms from a mystery into a manageable, highly rewarding task.
When you decide to tackle your own home electrical projects, you open the door to massive cost savings. If you hire a professional electrician, you can expect to pay anywhere from $4 to $10 per square foot for a complete rewiring job. For a standard-sized home, those numbers add up quickly. By rolling up your sleeves and learning the ropes, you keep those hard-earned dollars in your pocket while simultaneously upgrading your living space.
Learning the electrical wiring basics gives you ultimate control over your home’s functionality. You get to decide exactly where that new reading light goes or ensure your kitchen has enough power to run all your modern gadgets without tripping a breaker. It puts the power back in your hands—quite literally!

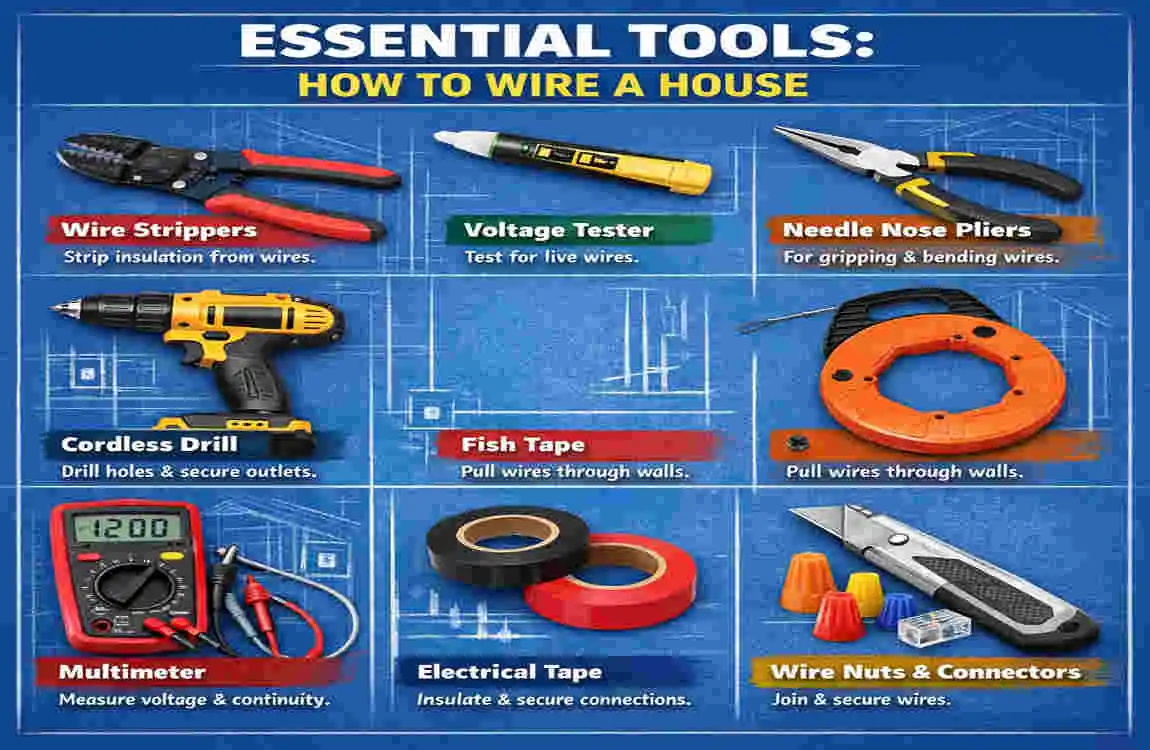

Essential Tools for Your Wiring Project
Before you can master how to wire a house, you need to equip yourself with the right gear. Trying to complete an electrical project with a standard butter knife and a pair of old craft scissors is a recipe for disaster. Having dedicated, high-quality electrical tools ensures your work is safe, precise, and up to code.
You do not need to buy out the entire hardware store, but there are a few absolute necessities. Let’s look at a list of must-have items to get you started on the right foot:
- Non-Contact Voltage Tester: This is your best friend. It allows you to check if a wire is “live” (carrying current) without actually touching the bare metal. You bring the pen-like tip near the wire, and it will beep or light up if danger is present.
- Wire Strippers: A good pair of wire strippers is essential for cleanly removing the plastic insulation from your wires without nicking the copper inside. Damaged copper can cause weak connections and overheating.
- Fish Tape: When you need to pull long runs of wire behind closed walls or through tricky conduits, fish tape is a lifesaver. It is a long, flexible reel of steel or fibreglass that easily glides through tight spaces.
- Digital Multimeter: This handy device measures voltage, current, and resistance. It helps you troubleshoot problems, verify your connections, and ensure your system is perfectly balanced before you flip the power back on.
- Linesman Pliers: These heavy-duty pliers are perfect for gripping, twisting, and cutting thick electrical wires. They act as an extension of your hands when making secure connections.
Investing in these tools will make your DIY journey significantly smoother. Always look for tools with thick, insulated rubber handles to provide an extra layer of shock protection.
Prioritising Safety Precautions
When it comes to electricity, there is absolutely no room for guesswork. We want you to finish this project safely, so let’s talk about the golden rules of electrical work. Your safety always comes first, second, and third.
The most critical rule is simple: always turn off the power at the main breaker before you start working. Never trust a wall switch to keep you safe. Even after you flip the main breaker to the “off” position, use your non-contact voltage tester to double-check the specific wires you plan to touch. Treat every single wire as if it is fully live until you have personally proven otherwise.
Next, you need to dress for the occasion. Personal Protective Equipment (PPE) is your armour. Always wear thick rubber-soled shoes to ground yourself. Invest in a pair of heavy-duty insulated gloves to protect your hands, and never forget your safety goggles. Snipping wires can send sharp pieces of copper flying through the air, and protecting your eyes is non-negotiable.
You also need to navigate the legal side of things. Most cities and counties require you to pull an electrical permit before altering your home’s wiring. This isn’t just bureaucratic red tape; it is a system designed to keep your house from catching fire. You will need to follow the National Electrical Code (NEC), which sets the standard for safe electrical design.
Finally, know your limits. It is perfectly okay to admit when a job is too big. Overloaded circuits and complex panel upgrades can get complicated very quickly. If you ever feel out of your depth, or if your home has old, crumbling wiring, pause the project and call a licensed professional.

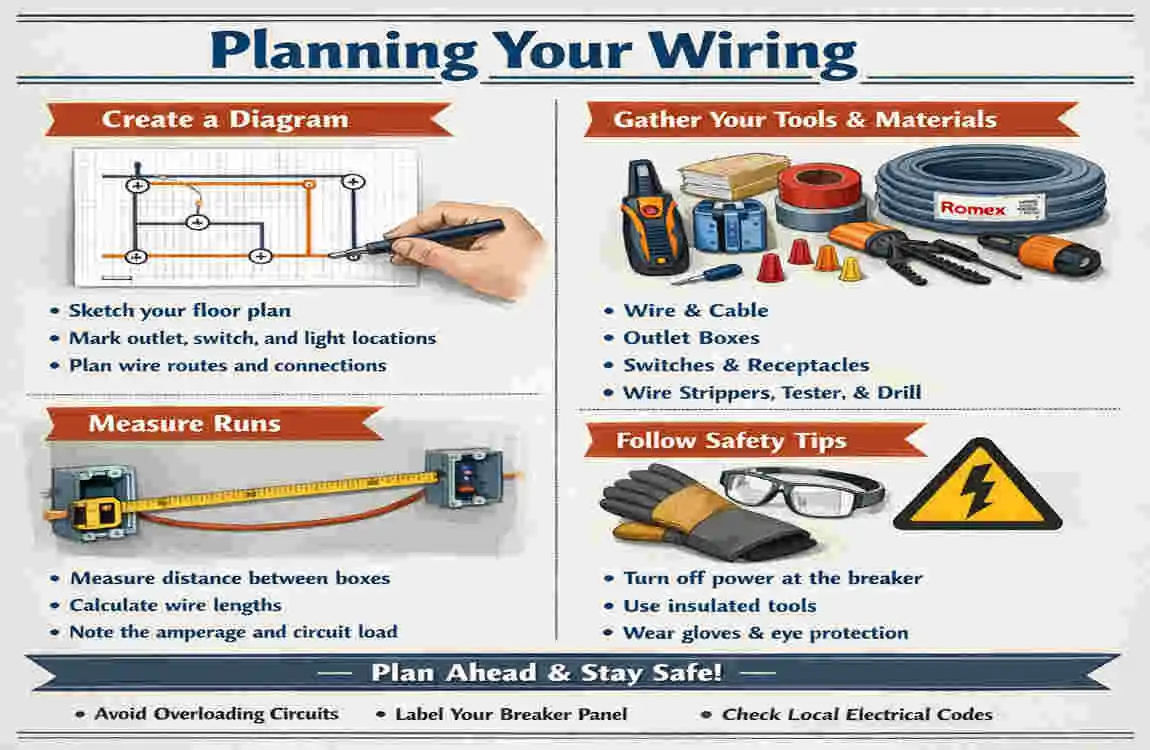

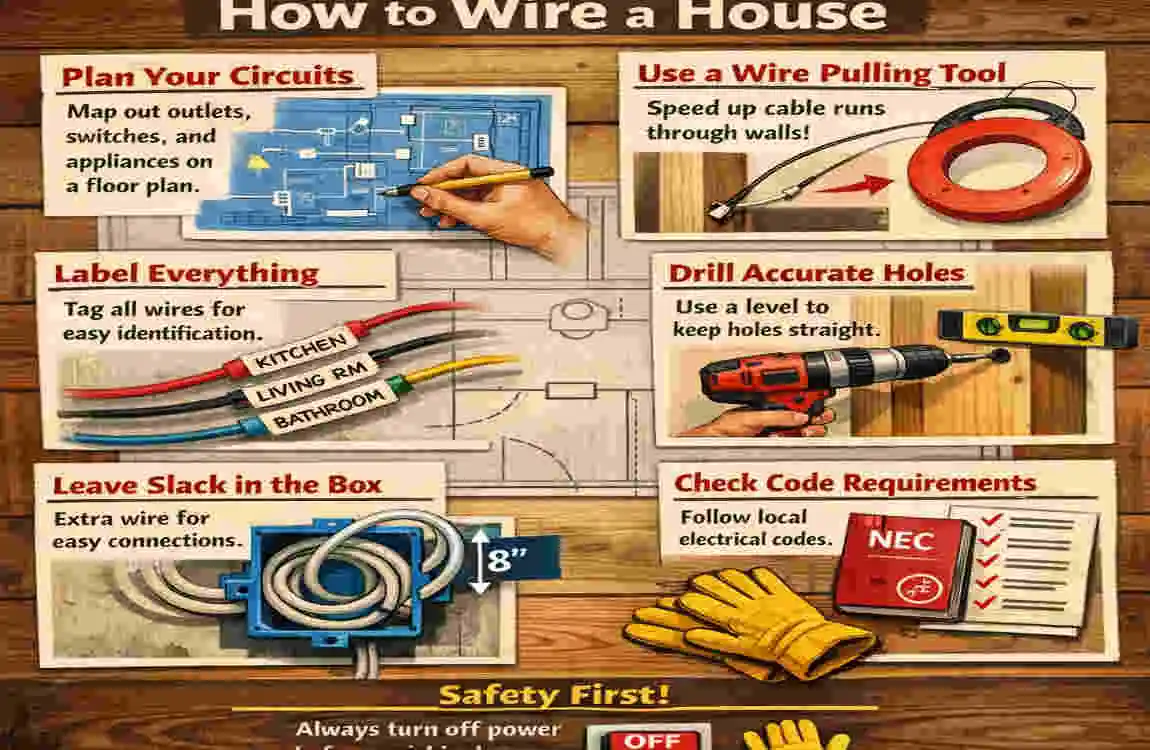

Planning Your Wiring
A successful electrical project is won or lost in the planning phase. You cannot simply start running wires through your walls and hope for the best. You need a solid strategy to ensure every room gets the power it demands without overwhelming your system.
Load Calculation
The first step in planning is calculating your electrical load. Think of electricity like water flowing through a series of pipes. Your home’s electrical service panel is the main water valve. If you turn on too many faucets at once, the water pressure drops. In electrical terms, if you plug in too many appliances, the breaker trips to prevent a fire.
Most modern homes require a 100-amp or 200-amp service panel. To determine what you need, you have to add up the wattage of the appliances you plan to use. A standard rule of thumb is to calculate the square footage of your living space and multiply it by 3 watts to cover basic lighting and everyday outlets.
From there, you add the heavy hitters. Your electric oven, your central air conditioner, and your water heater all draw massive amounts of power. By listing these appliances and their amperage requirements, you can easily calculate your total load and ensure your main panel can handle the stress.
Circuit Design
Once you know your total load, it is time to divide that power into manageable circuits. A circuit is simply a circular path that electricity travels, starting at the panel, visiting your outlets or lights, and returning to the panel.
You need to map these out carefully. Standard lighting circuits usually run on 15-amp breakers. Your bedroom and living room outlets generally require 20-amp breakers. However, your kitchen is a different beast entirely. Because microwaves, blenders, and toasters pull so much energy, kitchens require multiple dedicated 20-amp circuits, and large appliances might need 40-amp or 50-amp dedicated lines.

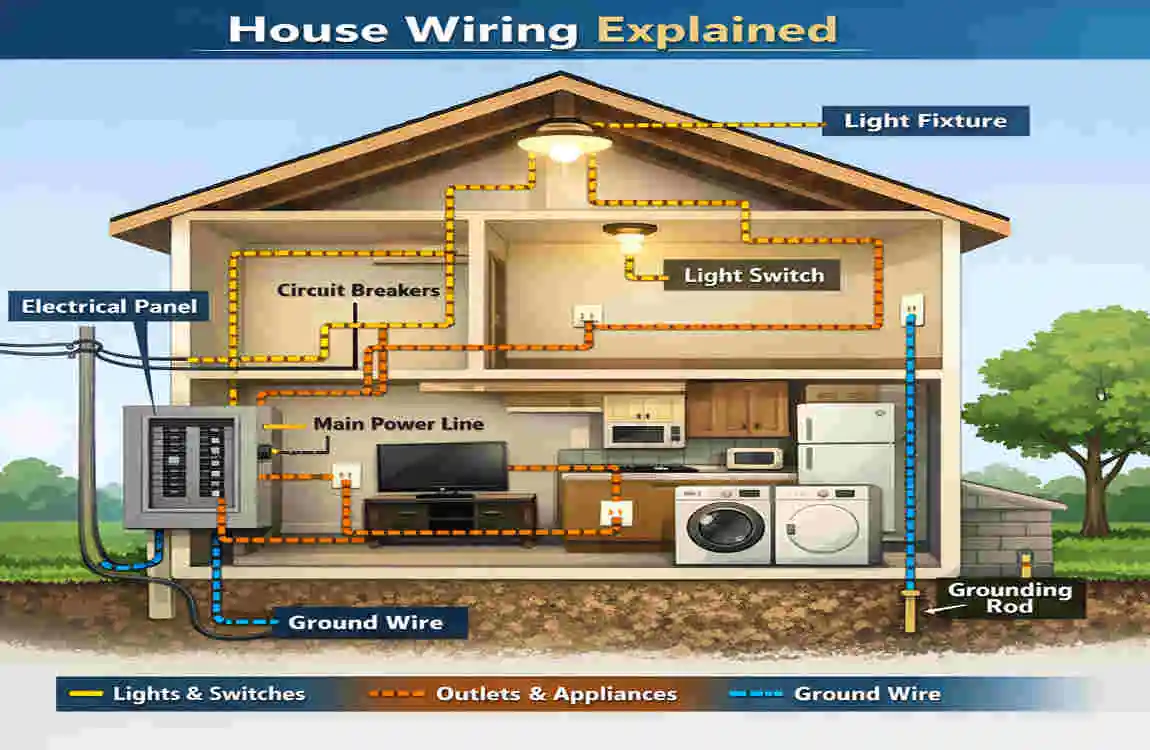

This is where drawing a house wiring diagram becomes crucial. Grab a piece of paper and sketch out your floor plan. Draw symbols for where you want every light switch, every overhead fixture, and every wall plug. A clear diagram acts as your ultimate roadmap, preventing costly mistakes once the walls are open.
Materials Needed
With your plan in hand, it is time to gather your materials. Choosing the right supplies is just as important as mastering the electrical wiring basics. If you use the wrong type of wire for a heavy appliance, the wire will overheat and melt the insulation.
The star of the show is your electrical cable, commonly referred to by the brand name “Romex.” This is a Non-Metallic (NM) sheathed cable that holds several smaller, insulated wires inside a tough outer jacket. You will mostly use two sizes: 14/2 cable for 15-amp lighting circuits, and thicker 12/2 cable for 20-amp outlet circuits.
You will also need to purchase electrical boxes. Every switch, light fixture, and outlet must be housed inside a plastic or metal box to contain any potential sparks. Make sure to buy the correct sizes; a box meant for a single light switch will not comfortably fit a bulky smart dimmer.
When it comes to wire material, always stick with copper. Some older homes used aluminium wiring to save money, but aluminium expands and contracts with heat much more than copper. This shifting causes loose connections over time, making aluminium a significant fire hazard. Stick to high-quality copper wiring for a safe, durable system.
To help you understand which wire goes where, here is a handy breakdown of wire gauges and their common uses:
Wire Gauge (AWG)Maximum Amperage Common Household Application
14 Gauge 15 Amps Basic lighting circuits, living room lamps.
12-Gauge 20-amps standard wall outlets, kitchen countertop plugs.
10-Gauge 30-amp electric clothes dryers, medium window AC units.
8-Gauge 40-amps electric kitchen ranges, smaller electric ovens.
6-Gauge 50+ Amps Central air conditioning, large electric furnaces.

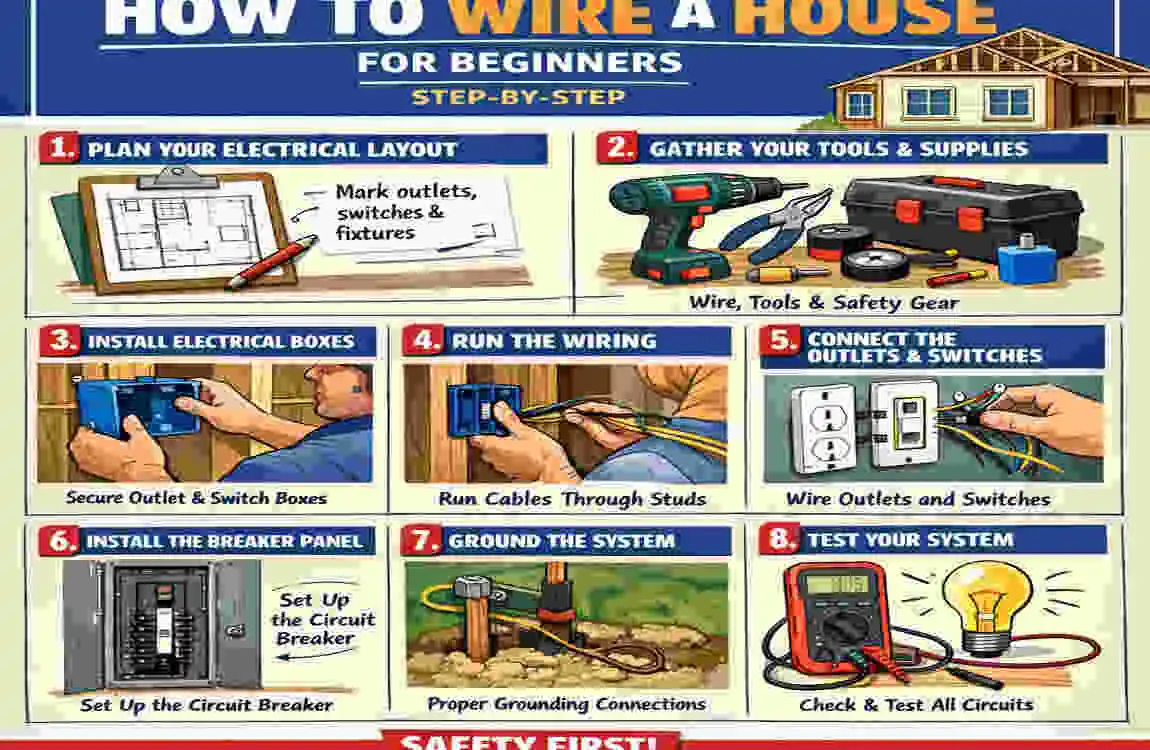

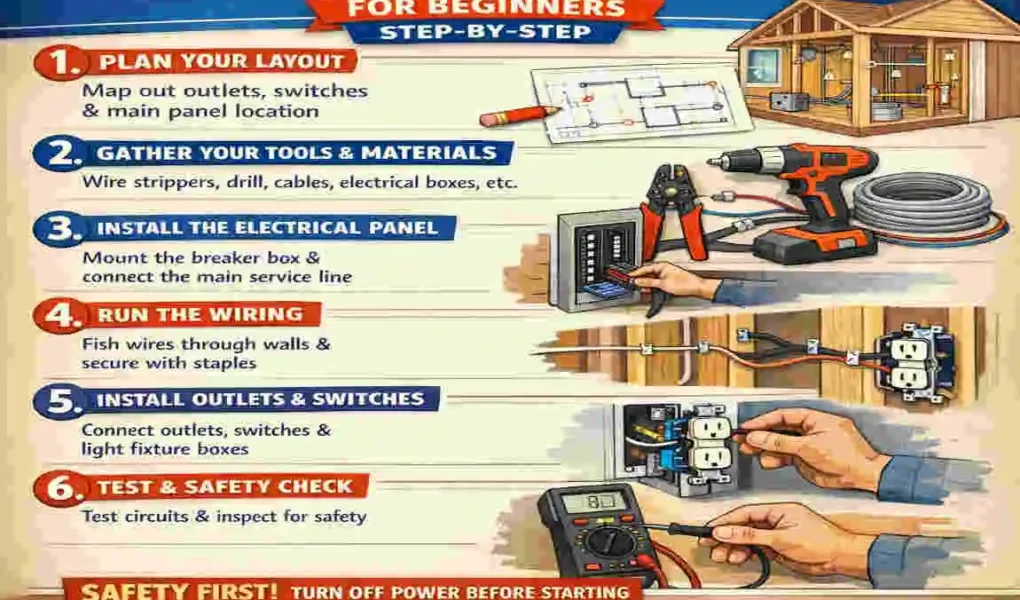

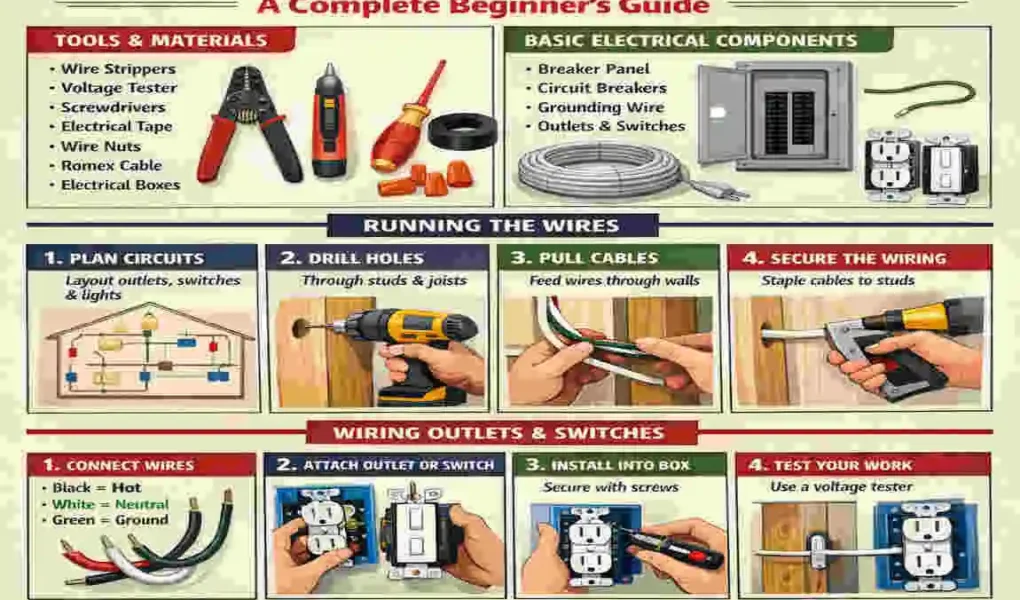

The Ultimate Step-by-Step House Wiring Guide
Now we arrive at the main event. You have your plan, your tools, and your materials. It is time to dive into the practical application of how to wire a house.

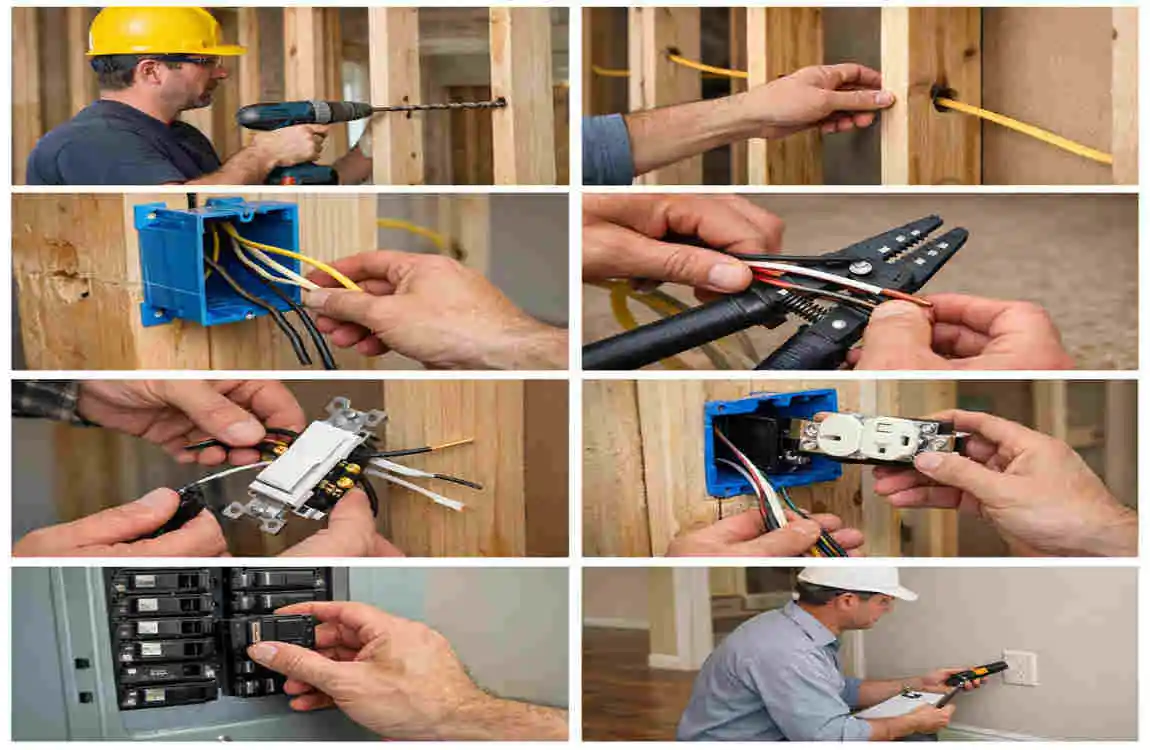

This step-by-step house wiring guide will walk you through the entire journey, from an empty wooden frame to a fully functioning electrical system. Take your time, read through each step carefully, and remember that patience is your greatest asset.
Shut Off Power and Secure the Area
We cannot emphasise this enough: before you do anything else, march straight to your main breaker panel. Locate the large main switch at the very top of the panel and firmly push it to the “off” position. This action cuts the flow of electricity to the entire house.
If you are working in a house where other people are present, you must clearly communicate what you are doing. Place a large piece of tape or a warning sign over the panel door that says “DO NOT TOUCH – ELECTRICAL WORK IN PROGRESS.” You do not want a well-meaning family member flipping the power back on while your hands are deep inside a junction box.
Even after flipping the main breaker, use your trusty voltage tester. Bring it close to the wires inside the panel to ensure absolutely no residual current is flowing. Once the tester remains silent and unlit, you are safe to proceed.
install the Electrical Boxes
Before you run a single inch of wire, you need to establish where that wire is going. This means mounting your electrical boxes to the wooden studs of your home’s framing.
Placement is heavily regulated by building codes to ensure uniformity and accessibility. Generally, standard wall outlets should be mounted so the bottom of the box is between 12 and 18 inches off the finished floor. Light switches are typically mounted so the centre of the box sits roughly 48 inches from the floor.
Take a tape measure and a pencil, and mark these heights on your wooden studs. Hold your plastic or metal electrical box against the stud, ensuring it sticks out just a tiny bit. This extra space accounts for the thickness of the drywall that will eventually cover the walls, ensuring your switches sit perfectly flush later on. Use a hammer and the nails provided on the box to secure it firmly to the wood. It should not wiggle or budge when you press against it.

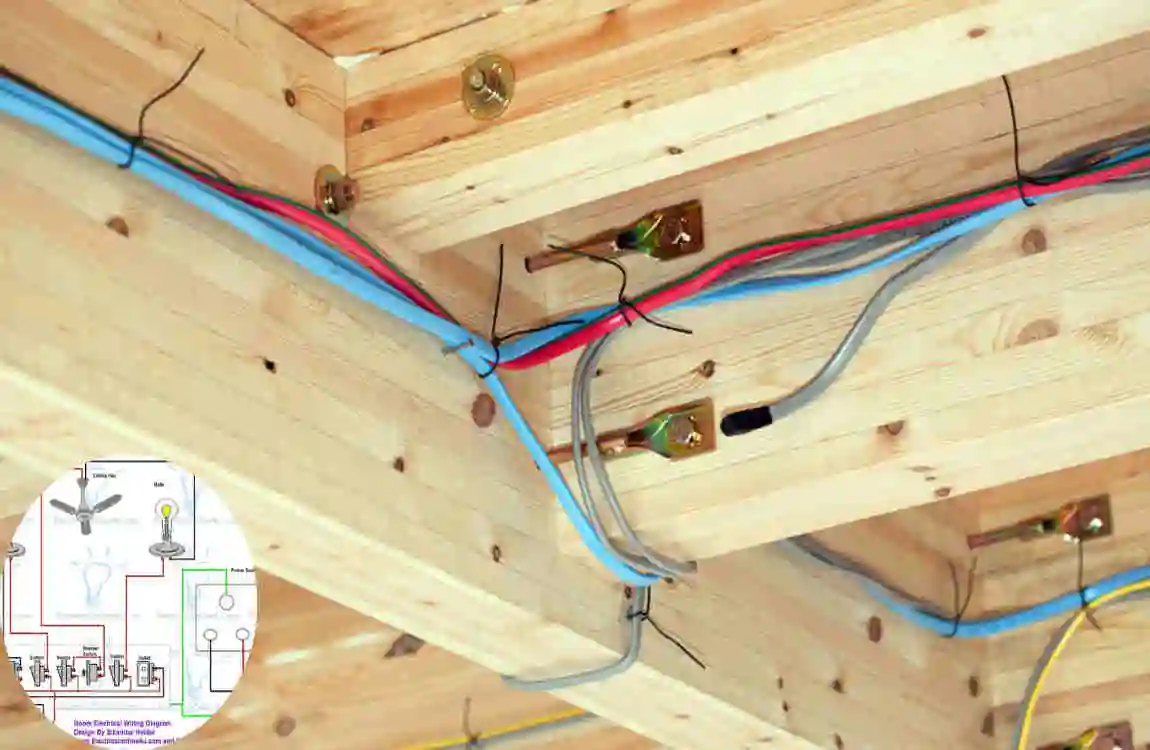

Run the Cables Through the Walls
This phase is often called “roughing in.” It involves pulling your NM Romex cables from the main breaker panel all the way to your newly installed electrical boxes.
Start by drilling holes through the centre of your wooden framing studs. Use a heavy-duty drill with a sharp spade bit. You want to drill right in the middle of the wood. If you drill too close to the edge, future drywall screws could easily pierce your wires.
Once your holes are drilled, begin pulling the cable. Start at the breaker panel, leaving about three feet of extra wire dangling so you have plenty of slack to work with later. Thread the cable carefully through the holes in the studs, making your way toward your electrical boxes.
When you reach a box, push about eight inches of wire inside it. To keep everything tidy and safe, use specialised plastic electrical staples to secure the cable to the wooden studs. Place a staple within 8 inches of every electrical box, and then place one every four feet along vertical runs. Make sure to label both ends of the wire with a permanent marker so you remember which room it belongs to!

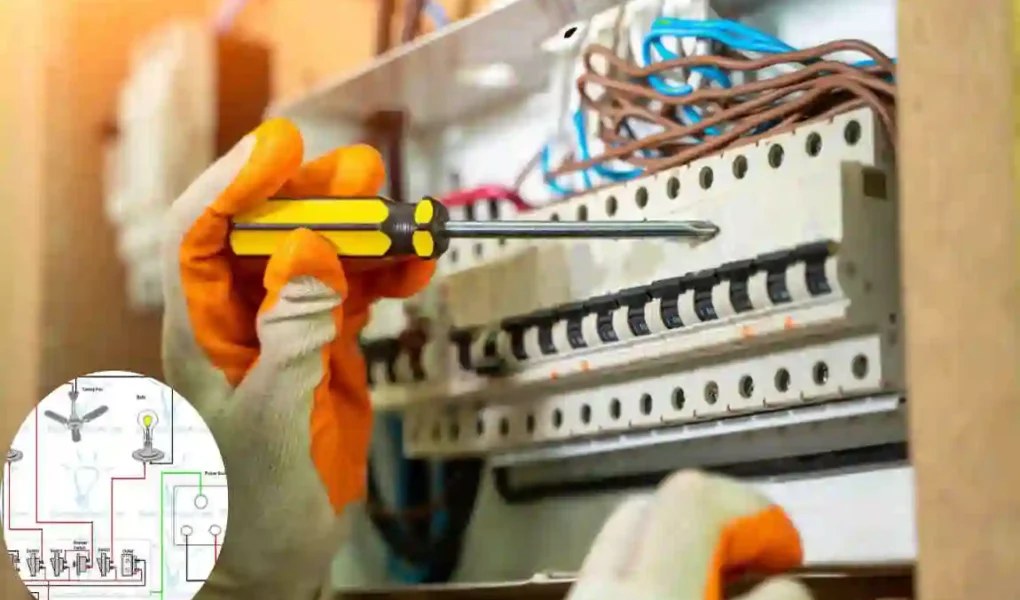

Connect Wires to the Breaker Panel
Connecting the heart of your system requires intense focus. Inside your breaker panel, you will see two main metal strips. One is the neutral bus bar (usually with many silver screws), and the other is the ground bus bar.
Take the end of your Romex cable that is hanging near the panel. Carefully slice off the outer plastic jacket to reveal the three smaller wires inside: a black wire, a white wire, and a bare copper wire. Use your wire strippers to remove about half an inch of colored insulation from the tips of the black and white wires.
First, take the bare copper wire and insert it into an empty slot on the ground bus bar, tightening the screw firmly. Next, take the white wire (the neutral) and secure it to an empty slot on the neutral bus bar.
Finally, connect the black wire (the hot wire). This wire goes directly into your new circuit breaker switch. Loosen the screw on the breaker, slide the bare copper tip of the black wire inside, and tighten it down securely according to the manufacturer’s torque specifications. Once the wire is locked in, firmly snap the new breaker into the panel’s main bus bar.
Wire the Wall Outlets
Now we move to the living spaces. Go to one of your outlet boxes where you previously left eight inches of wire hanging out. Again, strip the outer jacket to expose the black, white, and bare wires. Strip half an inch of insulation off the black and white tips.
Take a brand-new wall outlet and look closely at the sides. You will notice brass-colored screws on one side and silver-colored screws on the other. You will also see a green screw near the bottom.
Using your linesman pliers, bend the bare tip of each wire into a small hook resembling a shepherd’s crook. Loop the bare copper ground wire around the green screw and tighten it. Next, loop the white neutral wire around the silver screw and tighten it. Finally, loop the black hot wire around the brass screw and lock it down.
If you are wiring an area near water, such as a kitchen counter or a bathroom sink, you must use a special GFCI (Ground Fault Circuit Interrupter) outlet. These outlets have tiny built-in breakers that shut off power instantly if they detect moisture, saving you from severe shocks. Follow the specific instructions on the GFCI box, as its wiring configuration is slightly different from standard outlets.
Wire the Switches and Lights
Wiring a standard single-pole light switch is quite similar to wiring an outlet, but with a slight twist. A switch does not need a white neutral wire attached to it; its only job is to break the path of the black hot wire to turn the light on and off.
Inside your switch box, you will twist the two white neutral wires (the one coming from the panel and the one going up to the light) together and cap them off with a plastic wire nut. They pass through the box.
You will then attach the black wire coming from the power source (the line) to the bottom brass screw on the switch. Attach the black wire going up to the light fixture (the load) to the top brass screw. Don’t forget to attach the bare ground wires to the green screw on the switch!
If you are tackling stairs or long hallways, you should learn 3-way switch basics. These setups allow you to control a single light from two different locations. They require a special wire called 14/3 cable, which includes an extra red “traveller” wire to communicate between the two switches.
Grounding and Bonding
This is the most vital safety step in the entire process. Grounding provides a safe, emergency pathway for rogue electricity to escape into the earth rather than travelling through your body or starting a fire.
Every single metal component in your electrical system must be bonded together. This means all bare copper wires must connect continuously back to the main breaker panel.
From the main panel, a thick, heavy-gauge copper wire must run outside your house and clamp onto a massive copper rod driven deep into the earth. This is your earth ground rod. If lightning strikes your house or a massive power surge occurs, this grounding system redirects that violent energy safely into the dirt. Make sure your equipotential bonds—connections between metal water pipes and your electrical panel—are tightly secured to prevent your plumbing from ever becoming electrified.
Test the System and Energise
You have run the cables, tightened the screws, and double-checked your grounds. It is finally time to bring your system to life. But we do not just unthinkingly flip the switch. We test first.
While the main power is still off, use your multimeter to perform a continuity test. This checks to ensure there are no short circuits hidden in the walls where a black wire might accidentally be touching a white wire.
Once you are confident the system is clear, call your local building inspector for a final visual inspection. Once they give you the green light, stand to the side of your breaker panel (never directly in front of it), and firmly switch the main breaker back to the “on” position.
Walk through your house with a simple plug-in outlet tester. Plug it into every single receptacle. The lights on the tester will tell you instantly if your polarity is correct and if your grounds are solid. Flip your light switches. If the bulbs glow brightly and safely, you have successfully wired your house!

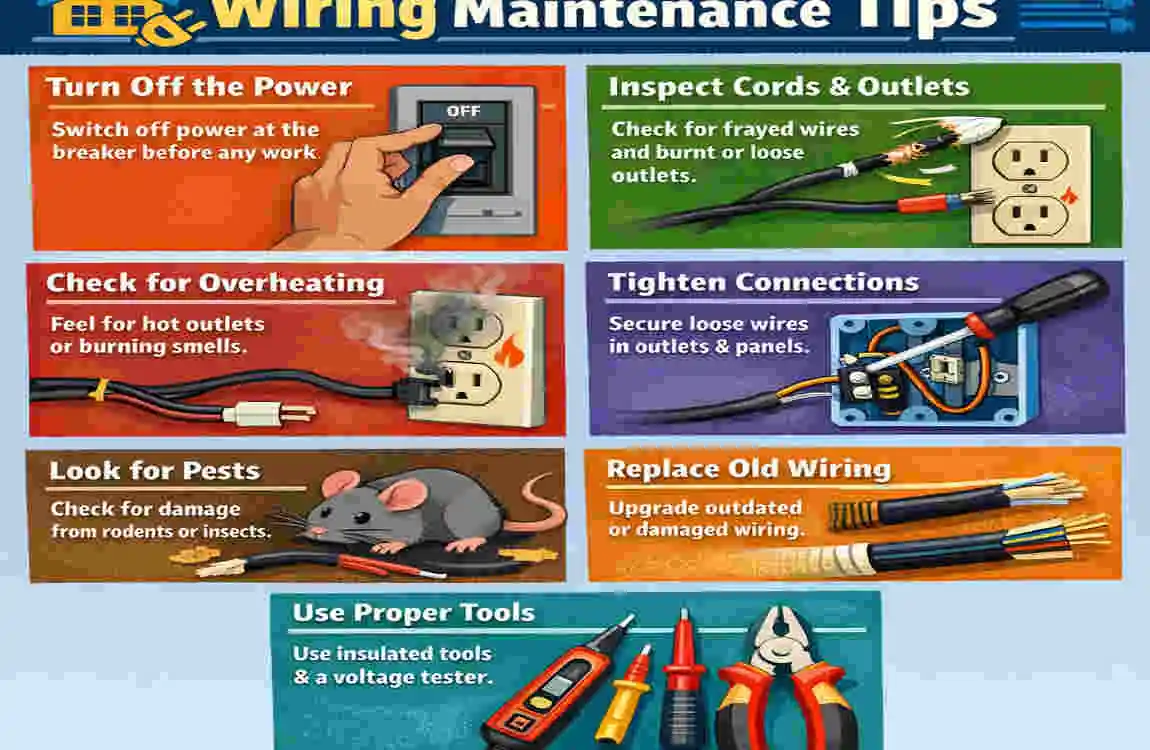

Common Mistakes to Avoid
Even the most enthusiastic DIYers can stumble. When learning how to wire a house, awareness of common pitfalls saves you from frustrating teardowns later.
One of the most frequent errors is the dreaded nail pop. This happens during step three if you drill your holes too close to the edge of the wooden studs. When you later try to hang drywall or a picture frame, a long screw pierces right through the wall and straight into your hidden Romex cable, causing an instant, dangerous short circuit. Always drill dead centre.
Loose connections are another massive hazard. When twisting wires together inside a plastic wire nut, give them a gentle but firm tug. If a wire slips out, it wasn’t tight enough. Loose wires cause electrical arcing, which generates intense heat and easily starts wall fires.
Finally, never mix up your wire gauges. Putting a thin 14-gauge wire on a hefty 20-amp breaker is a serious code violation. The breaker will allow more power to flow than the thin wire can safely handle, causing the wire to melt before the breaker ever trips. Always match your wire thickness to the corresponding breaker size perfectly. Fix overloads early by strictly following your load calculations.
Advanced Tips for Modern Homes
If you want to take your step-by-step house wiring project to the next level, you need to think about the future. Modern homes demand much more power and connectivity than houses built twenty years ago.
First, consider smart wiring. Instead of running basic electrical wire, plan to run neutral wires to every single switch box in your house. Many modern smart switches and home automation dimmers require a neutral wire to function, and having them pre-installed saves massive headaches later.
Next, think about electric vehicles. Even if you don’t own an EV today, installing a dedicated 50-amp, 240-volt circuit in your garage adds incredible resale value to your property. It makes your home instantly ready for an EV charger.
Similarly, if you ever plan to install rooftop solar panels, prep your system now. Running empty, oversized conduit pipes from your attic straight down to your main breaker panel makes future solar installations incredibly easy. If you plan to implement all these advanced features, you will likely need to upgrade your main panel to a 200A service to handle the increased demand smoothly.
Frequently Asked Questions
As you dive into your electrical wiring basics, you likely have a few lingering questions. Let’s tackle some of the most common inquiries beginners have.
How much does it cost to wire a house? If you hire a professional, completely rewiring a standard home usually ranges from $8,000 to $20,000, depending on the size of the house and the complexity of the walls. If you do it yourself, you only pay for materials, which typically drops the cost down to between $1,500 and $3,000.
Is DIY electrical work actually legal? In most residential areas, yes, it is entirely legal for a homeowner to work on their own property. However, you must almost always check your local codes, pull the necessary permits, and have your work approved by a city inspector before closing up the walls.
Where can I find a beginner’s house wiring diagram? The best diagrams are the ones you create specifically for your home’s layout. However, mapping out a basic room is easy. Draw a square representing your room, place an “S” for a switch by the door, and draw lines connecting the switch to circles (lights) and half-moons (outlets) placed every 12 feet along the walls.
