Backflow is one of those plumbing problems that many homeowners do not think about until something goes wrong. The trouble is, when it does happen, it can contaminate the same lines that carry safe drinking water. That is a serious issue for any home.
A small design mistake can create a path for contaminated water to move backward into clean pipes. This can happen due to pressure changes, poor connections, or poorly planned plumbing layouts. In simple terms, if the system is poorly designed, the wrong water can end up in the wrong place.
That is why this topic matters so much. If you have ever asked what should be designed into an operations plumbing system to prevent backflow?, the answer starts with smart planning, careful layout, and the right protection at the right points.

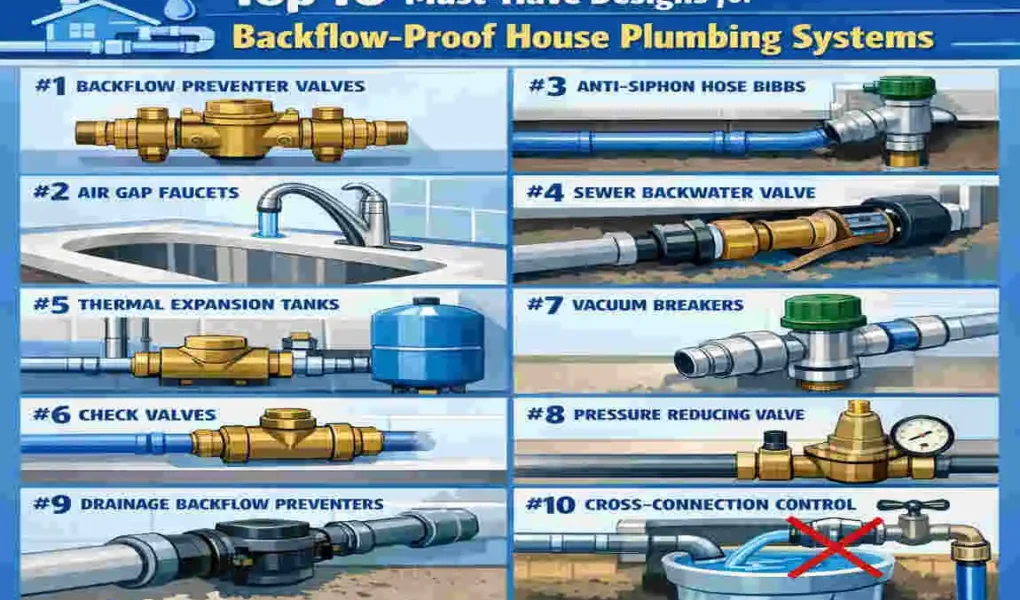

| Design feature | Purpose |
|---|---|
| Air gap | Creates a physical break that is the most reliable way to stop backflow. |
| Backflow prevention device | Stops contaminated water from flowing back into the potable supply. |
| Correct device selection | Use the right device for the hazard level, such as high-hazard or low-hazard applications. |
| Proper installation height | Devices should be installed above ground and at the required elevation so discharge is visible and safe. |
| Accessible location | Makes testing, servicing, and inspection easier. |
| Line strainer upstream | Helps prevent debris from making the device ineffective. |
| Isolation from toxic or corrosive areas | Protects the device from damage and failure. |
| Frost and physical protection | Reduces the risk of cracking or malfunction. |
| Backwater valves | Protects lower floors and below-grade drains from reverse flow. |
| Proper code compliance | Ensures the plumbing system meets local plumbing and building requirements. |

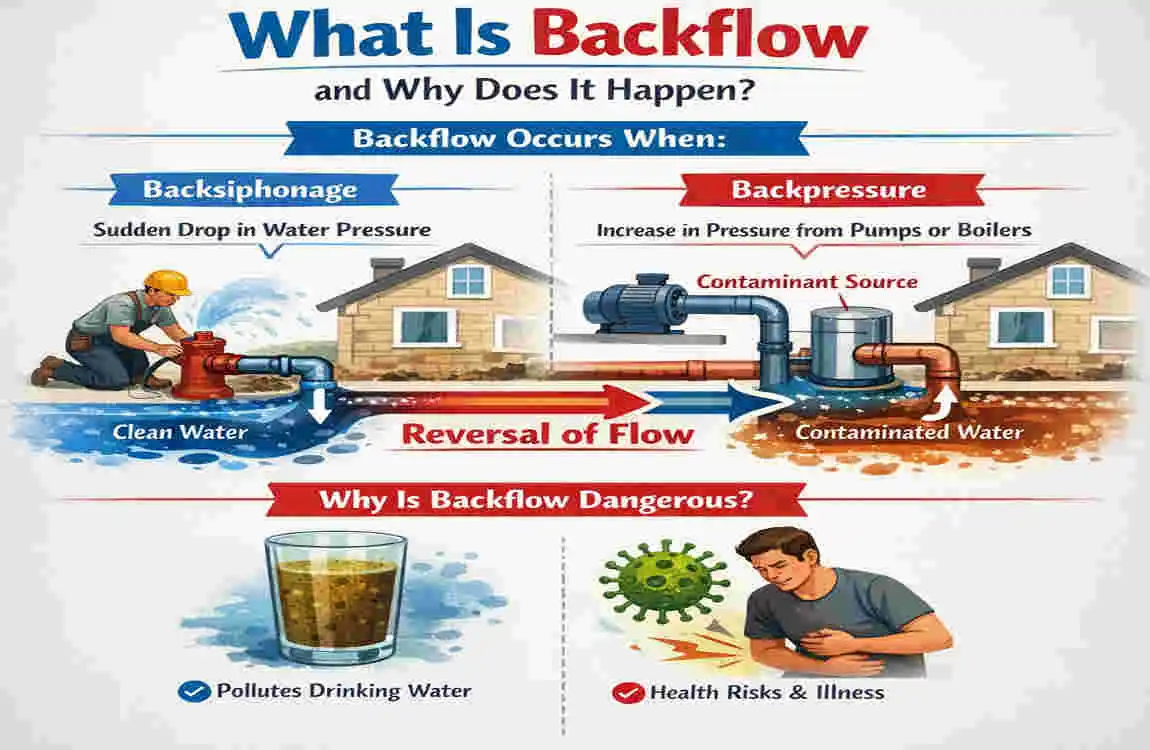

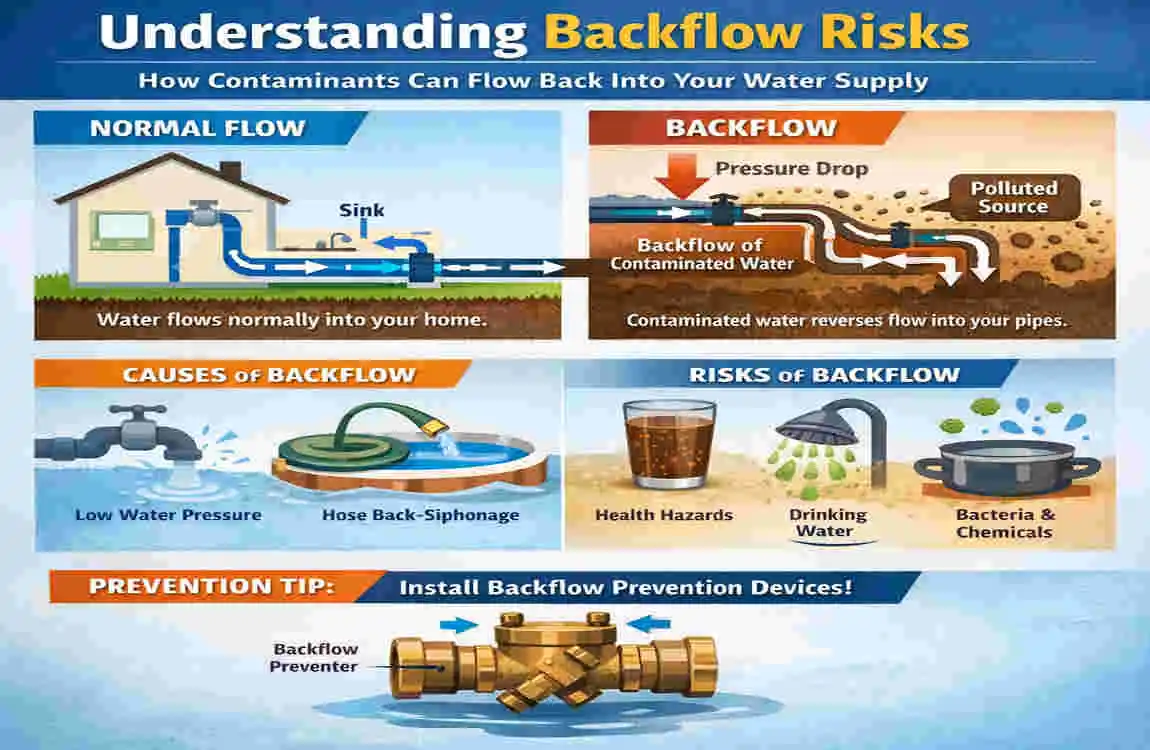

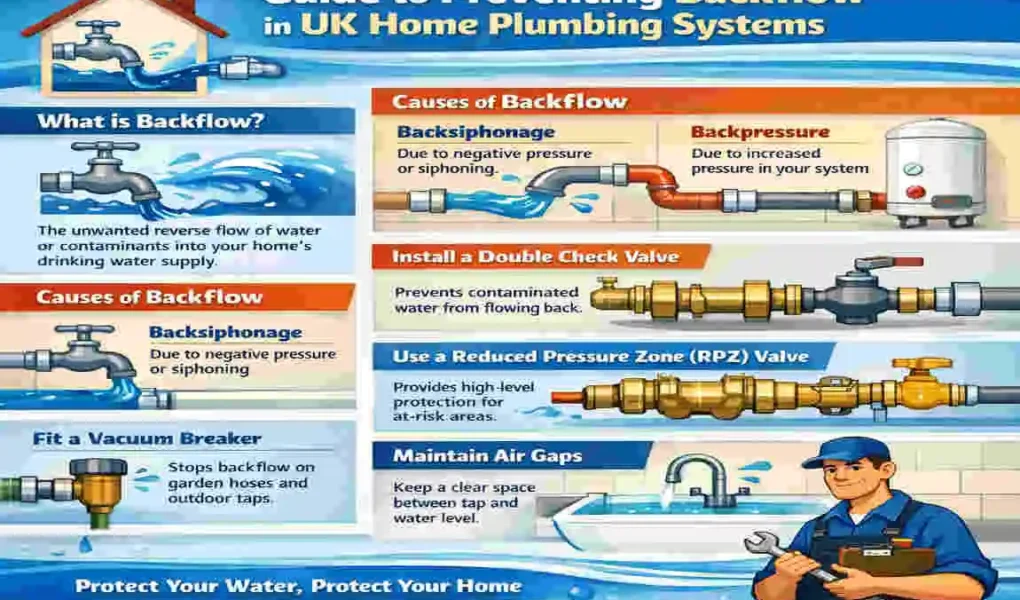

What Is Backflow and Why Does It Happen?
Simple explanation of backflow
Backflow means water moves in the wrong direction inside a plumbing system. Normally, water should flow from the clean supply line into your faucets, toilets, appliances, and fixtures. But when pressure changes, water can reverse and pull dirty water back into the clean line.
There are two main ways this happens:
- Back-siphonage: This occurs when pressure in the main water line drops suddenly, as if a vacuum were pulling water backward.
- Back pressure: This occurs when the pressure in a connected system exceeds that of the supply line, forcing water to move backward.
Both situations can create a health risk. If the reverse osmosis water contains chemicals, soap, fertilizer, bacteria, or other contaminants, those pollutants can travel into the drinking water system.
Why residential systems are vulnerable
Homes may look simple on the surface, but they often have many places where clean and dirty water can come into contact. These weak points are often called cross-connections.
A cross-connection is any point where drinking water and non-drinking water can come into contact. That can happen through:
- Irrigation systems
- Outdoor hose connections
- Washing machines
- Water softeners
- Boiler or heating systems
- Utility sinks
- Reclaimed water lines
Pressure changes can make these connections risky. For example, if a water main breaks on the street, the pressure inside your home’s supply line can drop. If a garden hose is sitting in a bucket, puddle, or fertilizer mix, that dirty water can be pulled back into the house plumbing.
That is why backflow prevention is not just about adding one device. It starts with a well-designed system from the beginning.
Why Backflow Prevention Starts With Design
Design is better than damage control
Many people think backflow protection means installing a device and moving on. But the truth is, good design matters just as much as the device itself. A preventer can help, but if the system layout is poor, the risk remains.
This is why the best approach is to build protection into the plumbing plan from the start. A strong design reduces the risk of contamination before it even begins. It also makes the system easier to inspect, repair, and maintain later.
When plumbing is designed well, it naturally:
- Keeps clean and dirty water separate
- Controls pressure changes
- Reduces unsafe connections
- Makes backflow devices easier to access
- Supports long-term safety
In other words, prevention should be part of the plan, not a fix added after a problem appears.
Health and property protection
Backflow is not just a plumbing issue. It is a health issue. Contaminated water can spread germs and chemicals into the water you use for drinking, cooking, bathing, and washing. Even if the contamination is small, it can still create serious risk.
Good design also protects your property. A contaminated water event can lead to:
- Expensive cleanup
- Pipe flushing and repairs
- Damaged appliances
- Failed inspections
- Unplanned replacement costs
When the system is designed for safety, you lower the chance of emergencies and save money over time. That is the real power of backflow prevention.
Air Gaps
The most reliable physical barrier
An air gap is one of the simplest and most dependable ways to stop backflow. It is just a physical space between the end of a water line and the highest possible water level in a fixture or tank.
Because there is open air between the two points, dirty water cannot physically reach the clean supply line. No valve can beat that kind of simple protection. It is one of the safest design choices in plumbing.
You will often see air gaps used where water could otherwise move backward through a hose or drain connection. The idea is very straightforward: if water cannot touch the clean line, it cannot travel back into it.
Best places to use air gaps
Air gaps are useful in many parts of a home, especially where water may drain, be stored, or mix with other substances.
Common places include:
- Kitchen sinks
- Dishwasher discharge lines
- Drainage-related connections
- Water storage tanks
- Some appliance tie-ins
- Laundry or utility systems in special layouts
Air gaps are especially valuable anywhere water from one system could potentially reach another. If you are building or remodeling, this is one of the first things to ask about, as it offers strong protection with very little complexity.

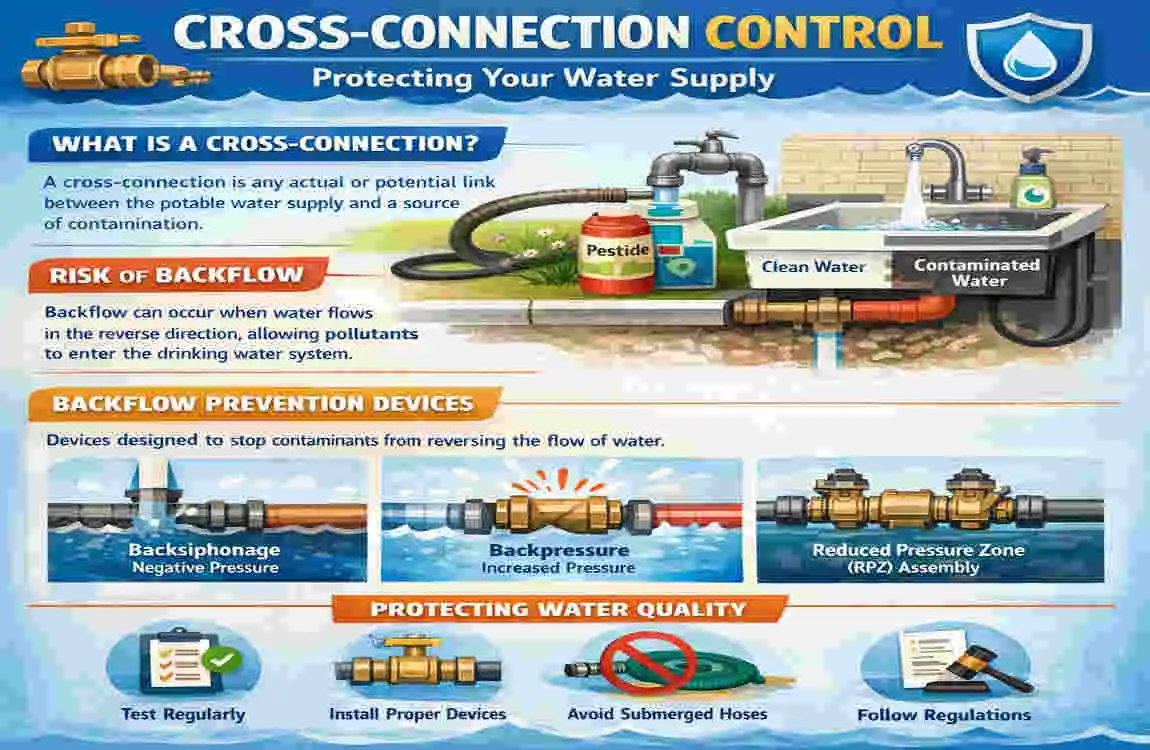

Cross-Connection Control
Eliminate risky connections
Cross-connections are among the leading causes of backflow. They happen when a clean water line connects, even indirectly, to a source that may be dirty or chemically treated.
A good plumbing design should remove or isolate these connection points as much as possible. That means thinking carefully about how every pipe, hose, valve, and fixture connects to the rest of the system.
The goal is simple: keep potable water separate from anything that could contaminate it.
That is why backflow prevention is not only about devices. It is also about smarter routing and cleaner separation throughout the home.
Common household cross-connection risks
Some of the most common cross-connection risks in a house include:
- Irrigation systems that may contain fertilizer or standing water
- Outdoor faucets with attached hoses
- Boilers and heating systems
- Water softeners
- Washing machine hookups
- Utility sinks
- Appliance hoses
- Reclaimed or non-potable water systems
A simple example helps clarify this.
Imagine a garden hose left lying in a bucket of soapy water. If pressure in the home suddenly drops, that dirty water can be sucked backward through the hose and into the plumbing system. That is a classic cross-connection problem.
Good design avoids this by separating systems, raising outlets, adding protection devices, and making unsafe connections harder to create.

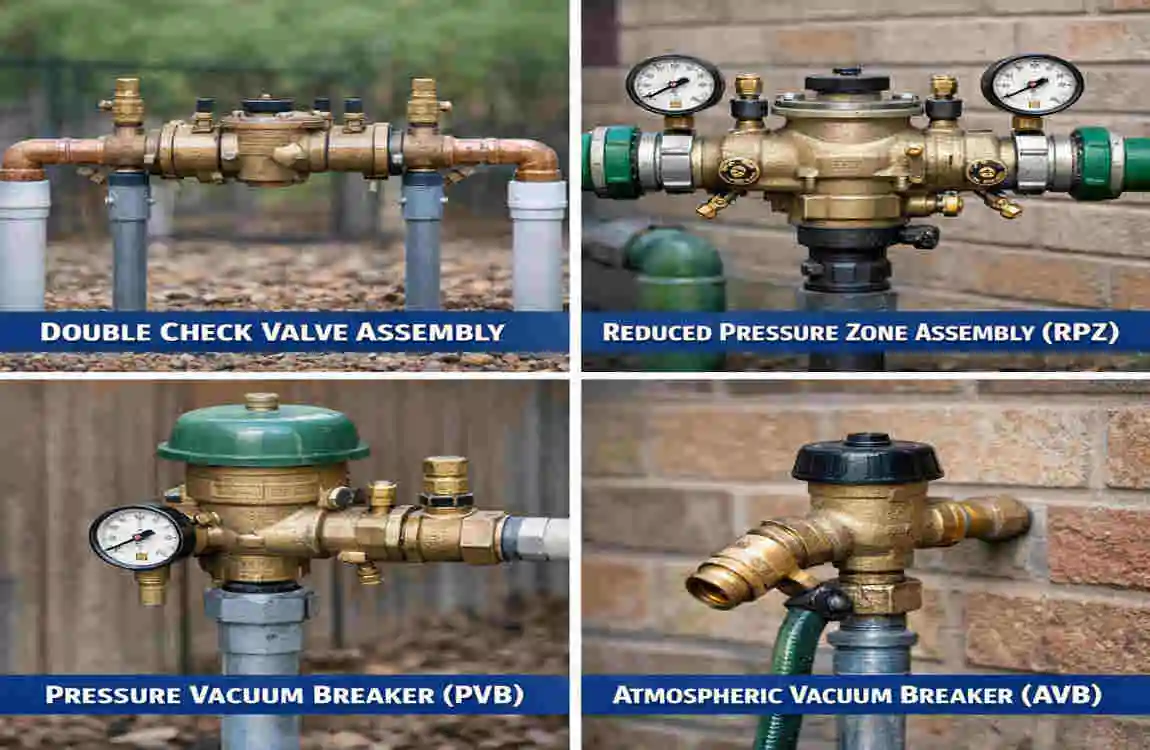

Backflow Prevention Devices
Device types that protect homes
Backflow prevention devices are an important layer of protection. They are designed to prevent water from moving backward when pressure changes.
The right device depends on the hazard level and the location. Some devices are made for low-risk areas, while others are built for higher-risk systems that may contain chemicals or dirty water.
Common device types include:
- Double check valves
- Vacuum breakers
- Reduced pressure zone assemblies
- Atmospheric vacuum breakers
- Pressure vacuum breakers
Each one works a little differently, but the main goal is the same: keep contaminated water from entering the clean supply.
Where each device belongs
Not every device works in every situation. Choosing the wrong one can leave the system unprotected. That is why the design stage matters so much.
Here is a simple comparison table to help show the differences:
Device TypeMain PurposeBest Use in a HomeStrengthsLimits
Atmospheric Vacuum Breaker Stops back-siphonage Hose bibs, simple outdoor lines Simple and low cost Must be installed correctly and is not for every setup
Pressure Vacuum Breaker Stops back-siphonage under pressure Irrigation systems Good for sprinkler protection Not meant for all contamination levels
Double Check Valve Assembly Protects against back pressure and back-siphonage Moderate-risk lines Reliable and widely used Requires inspection and maintenance

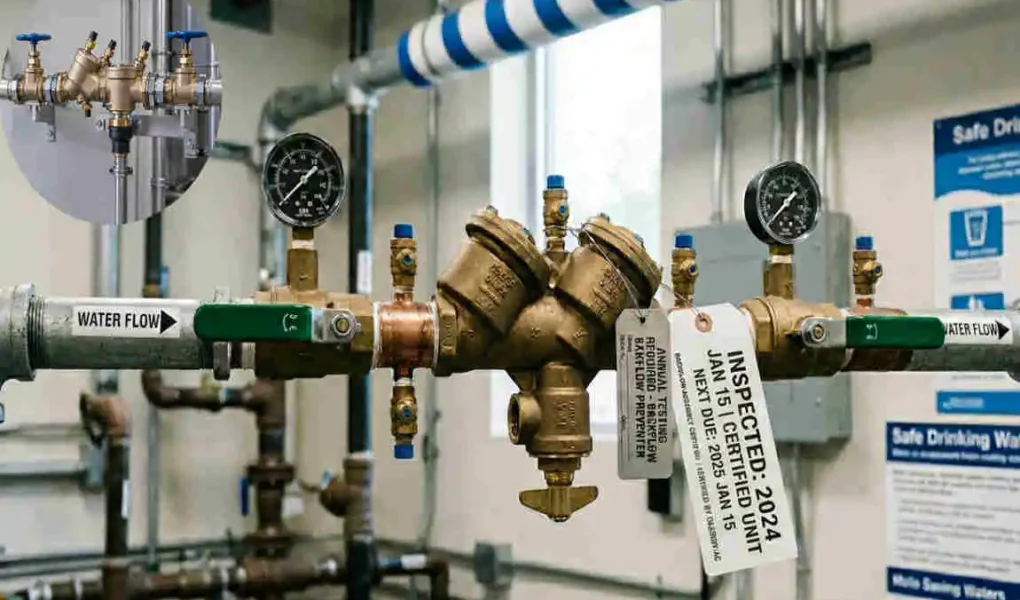

Reduced Pressure Zone Assembly Highest level of mechanical protection Higher-risk systems like some irrigation or special supply lines Very strong protection More complex and often more expensive
The right choice depends on what the line serves, how risky the water source is, and what your local code requires. A professional plumber should always help make that decision.
Pressure Management
Stable pressure prevents reversal
Pressure problems are among the main reasons backflow occurs. When the pressure in the supply line drops too low, dirty water can be pulled backward. When pressure rises too high in one part of the system, it can also force water in the wrong direction.
That is why a backflow-proof system must include pressure management. A plumbing system should not just move water; it should move water at a stable, controlled pressure.
Balanced pressure helps in several ways. It protects fixtures, reduces strain on pipes, and lowers the chance of back-siphonage or back pressure.
Tools for pressure control
Several parts of a system can help manage pressure safely:
- Pressure reducing valves
- Correctly sized pumps
- Proper pipe sizing
- Balanced routing
- Expansion control where needed
If pressure is too high, fixtures can wear out faster and systems can become unstable. If pressure is too low, there may be a greater chance of reversal during a main line issue.
A well-designed plumbing system pays attention to both extremes. It does not leave pressure to chance.
Separate Potable and Non-Potable Lines
Keep water systems clearly divided
One of the best ways to prevent backflow is to ensure potable and non-potable lines are clearly separated. Potable water is water that is safe for drinking and cooking. Non-potable water may be used for irrigation, flushing, or other tasks, but it should never be mixed up with drinking water.
If the lines are not clearly divided, confusion and contamination can happen. That is why separate pathways are a major design feature in safer homes.
This matters even more in homes with:
- Reclaimed water systems
- Rainwater collection
- Irrigation feeds
- Water treatment equipment
- Specialized mechanical systems
A clear line split reduces the chance that unsafe water can travel where it should not.
Color coding and labeling
Good design is not just about pipes behind walls. It is also about making the system easy to understand later. That is where labeling and color coding help.
Clear labeling can show:
- Which pipes carry drinking water
- Which lines are non-potable
- Where shutoffs are located
- Which valves control special systems
This makes inspection easier and lowers the chance of errors during repair, remodeling, or future upgrades. It also helps plumbers and homeowners quickly identify the system during emergencies.
Proper Fixture Elevation and Routing
Gravity and layout matter
Where a fixture sits in relation to the rest of the plumbing can make a big difference. Water naturally follows gravity, so the height and path of each line matter.
If a system has low points where water can sit, that water may become stagnant. If the routing is poor, water may also be more likely to reverse during pressure changes.
That is why fixture elevation and pipe route should be planned carefully. The goal is to keep water moving in the right direction and avoid places where contamination can collect.
Smart layout choices
A strong design usually includes:
- Correct pipe slope
- Short, direct routing where possible
- Avoidance of dead-end lines
- Elevated tanks or properly placed fixtures
- Minimal low spots where water can pool
Think of it this way: the easier you make the path for water to move forward, the harder it is for contamination to linger or reverse.
Good layout also makes the system easier to maintain. That helps the whole home stay safer over time.
Hose Bib and Outdoor Tap Protection
Outdoor faucets are major risk points
Outdoor taps may seem harmless, but they are among the most common backflow points in a house. Why? Because hoses are often attached to them, and hoses are easy to place in dirty water, buckets, garden chemicals, or puddles.
A hose can create a direct path for contamination if the pressure drops. That means an outdoor faucet can become a gateway for polluted water unless it is protected properly.
This is why hose bib protection is so important in residential plumbing design.
Seasonal and garden-related hazards
Outdoor water use often changes with the seasons. In spring and summer, people may attach:
- Sprayers
- Fertilizer mixers
- Pressure washers
- Garden nozzles
- Long extension hoses
A hose left submerged in a bucket or pond is especially dangerous. If pressure falls, that water can get pulled backward into the home system.
A simple real-world example makes this easy to see:
Imagine someone filling a small garden sprayer through an outdoor hose. The sprayer sits on the ground, and the hose end is dipped into a tank of liquid fertilizer. If the water pressure drops suddenly, that fertilizer mixture can move into the hose and then into the home’s plumbing. That is exactly the kind of situation backflow protection is meant to stop.

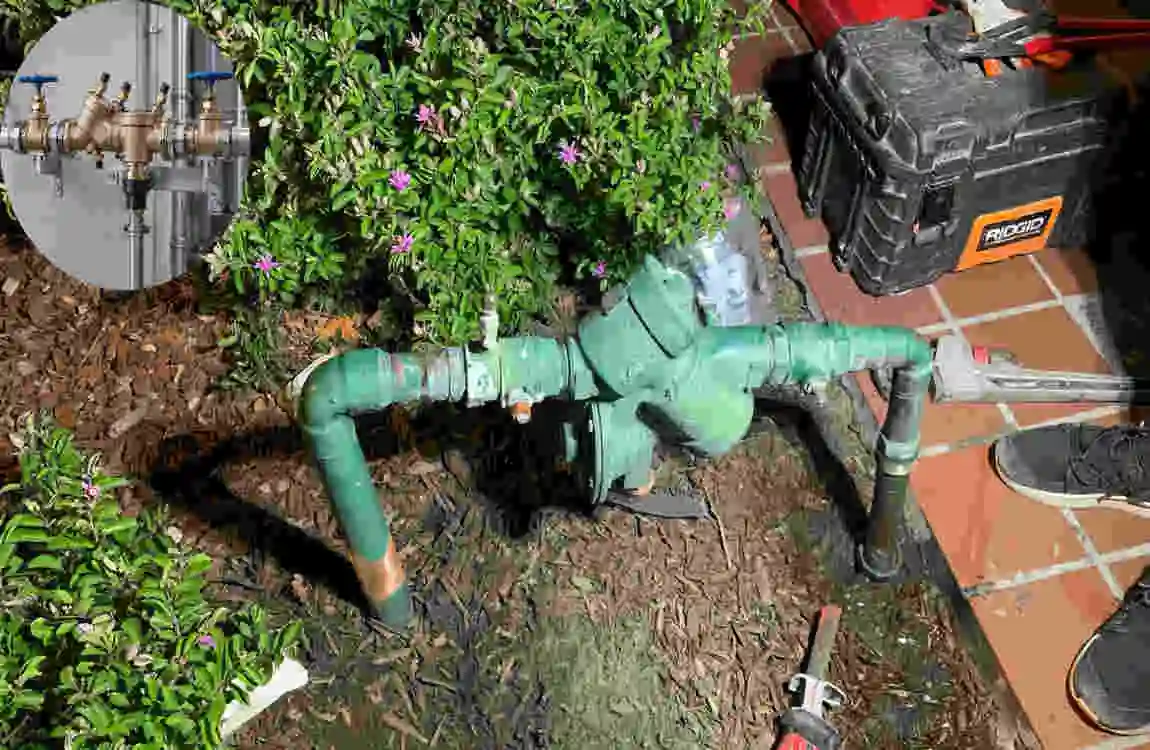

Irrigation System Isolation
Lawn systems need dedicated protection
Irrigation systems are one of the most important areas to protect because they often carry water that is exposed to soil, fertilizer, and standing water. That makes them much riskier than a simple indoor tap.
A strong design should isolate irrigation systems from the drinking water supply. They should not rely on guesswork or loose connections. They need dedicated protection that fits the risk level.
Without proper isolation, dirty water from sprinkler lines can move back into the household water supply, especially during pressure drops or when valves fail.
Design features for irrigation safety
Good irrigation design often includes:
- Vacuum breakers
- Backflow prevention assemblies
- Zone isolation
- Accessible test points
- Clear shutoff locations
Irrigation systems also need to be easy to inspect before each season. Dirt, root growth, and weather changes can all affect performance.
If you only remember one thing here, remember this: irrigation systems should never be treated like ordinary clean water lines. They need special care because they are exposed to outdoor contamination every day.
Accessible Inspection and Maintenance Points
Backflow devices must be reachable
Even the best device can fail if nobody can inspect it. That is why access is such a big part of design. A backflow preventer hidden behind walls, buried in a tight corner, or blocked by landscaping is a problem waiting to happen.
A safe system should allow easy:
- Testing
- Servicing
- Replacement
- Shutoff during emergencies
If a plumber cannot reach the device, it becomes harder to keep the system safe. That can turn a small issue into a bigger one.
What access should look like
Good access usually means:
- Enough room to work around the device
- Shutoff valves placed where they can be reached quickly
- Test ports left open and visible
- No permanent blockage by storage, fencing, or bushes
- Clear space for maintenance tools
This is one of the simplest design choices, but it makes a huge difference over time. Easy access supports regular care, and regular care protects water quality.
Code-Compliant System Planning
Follow local plumbing codes
A backflow-proof system must comply with local plumbing regulations. These rules are not just paperwork. They are based on safety, risk levels, and how water systems behave in real life.
Backflow requirements can vary depending on:
- Local building codes
- Hazard classification
- System type
- Water source
- Fixture location
That is why a system that works in one area may not meet rules in another. Proper planning helps protect both the homeowner and the installer.
When the design follows code, it is more likely to be safe, legal, and long lasting.
Plan for future changes
A good plumbing design should not only fit today’s needs. It should also leave room for tomorrow’s changes.
Think about future upgrades like:
- New appliances
- Additional bathrooms
- Outdoor kitchens
- New irrigation zones
- Water treatment equipment
- Home additions
If the system is designed with flexibility, you will have fewer surprises later. That means less rework, fewer risks, and lower costs.
This kind of planning is a major part of answering the question of what should be designed into an operations plumbing system to prevent backflow? The answer is not just one part. It is a complete system that can handle today’s use and future change.
Additional Design Features That Strengthen Protection
Check valves in the right locations
Check valves can help stop water from moving backward, but only when they are selected and installed correctly. They are not a cure-all. Still, when used in the right place, they add another useful layer of protection.
They work best when the layout already supports safe flow direction. That is why design comes first and the valve comes second.
Drainage and venting
Drainage matters more than many people realize. If water drains properly, it is less likely to pool and create problems. Good venting also helps the system manage pressure, reducing the likelihood of back-siphonage.
When water stagnates or pressure builds up, the system becomes less stable. Proper drainage and venting help keep it balanced.
Isolation shutoffs
Isolation shutoffs let you turn off one section without shutting down the entire house. That is useful during repairs, inspections, or emergencies.
A well-designed system often has separate shutoffs for:
- Irrigation
- Outdoor taps
- Water treatment equipment
- Appliance zones
- Special-use lines
This makes it easier to respond fast when something goes wrong.
Common Backflow Design Mistakes
Poor pipe separation
One of the biggest mistakes is placing pipes too close together or confusingly routing them. When clean and dirty lines are crowded together, the chance of cross-connection rises.
A compact layout may save space, but it can also create hidden risks if not carefully planned.
Wrong device selection
Not all preventers work for all situations. A device that is fine for a hose bib may not be strong enough for an irrigation system. A simple setup may need one type of protection, while a higher-risk line may need something more robust.
Using the wrong device gives a false sense of safety. That is a serious problem because the system may look protected even when it is not.
No maintenance access
A device that cannot be inspected is not a complete solution. Hidden installations make it harder to test and service the system. Over time, that can lead to failure, missed leaks, and contamination risk.
A backflow design should always assume maintenance will be needed later.
How to Choose the Right Design for Your Home
Match design to risk level
Start by looking at the parts of your home that could create backflow risk. Ask yourself where water might mix, reverse, or become contaminated.
Key areas to review include:
- Irrigation systems
- Outdoor taps
- Water softeners
- Water heaters
- Laundry connections
- Utility sinks
- Specialty or treatment systems
Once you understand the risk, you can choose the right protection. Low-risk areas may need a simple device. Higher-risk areas may need stronger separation and more advanced preventers.
Work with a qualified plumber
Backflow protection is one of those things that looks simple on the surface but becomes more technical once the system is opened up. A qualified plumber can help you choose the right layout, select the appropriate device, and ensure the installation complies with code.
That support matters because safety depends on details. A small mistake in placement or sizing can reduce the effectiveness of the entire system.
If you are building, remodeling, or updating older plumbing, getting expert help is one of the smartest moves you can make.
Benefits of a Backflow-Proof Plumbing System
Cleaner water and safer living
The biggest benefit is the most obvious one: better water safety. When your plumbing system is designed properly, you lower the risk of contamination in the water you drink, cook with, and bathe in.
That creates peace of mind for your household. You can use your plumbing with more confidence because the system has been built to protect you.
Lower repair and replacement costs
Preventing backflow is much cheaper than cleaning up after contamination. A well-designed system helps prevent damage to pipes, fixtures, appliances, and water treatment equipment.
It also reduces the chance of emergency service calls and unexpected repairs. In the long run, that saves both time and money.
Better long-term property value
A well-designed plumbing system enhances your home’s overall value. Buyers and inspectors often notice when water systems are clean, organized, and code-compliant.
That kind of reliability matters. It tells people the home has been cared for properly and that the plumbing is less likely to cause trouble later.
Frequently Asked Questions
What should be designed into an operations plumbing system to prevent backflow?
The best answer includes air gaps, cross-connection control, backflow prevention devices, pressure management, clear separation of potable and non-potable lines, proper fixture routing, outdoor tap protection, irrigation isolation, maintenance access, and code-compliant planning. In simple terms, the system should be designed so contaminated water cannot easily move backward into clean water lines.
Is a backflow preventer enough on its own?
No, not by itself. A backflow preventer is important, but it works best when the entire system is well-designed. If the plumbing layout is poor or the wrong device is used, the risk can remain.
Where is backflow most likely to happen in a house?
The most common risk points are irrigation systems, outdoor faucets, hose connections, appliance lines, water softeners, and any point where clean water may connect to a dirty or chemically contaminated source.
How often should backflow devices be checked?
That depends on the device type and local plumbing code. Some devices require annual testing, while others may require different service intervals. The safest approach is to follow local rules and have a qualified plumber handle inspections.
